Same model may have multiple batches, images only for reference.

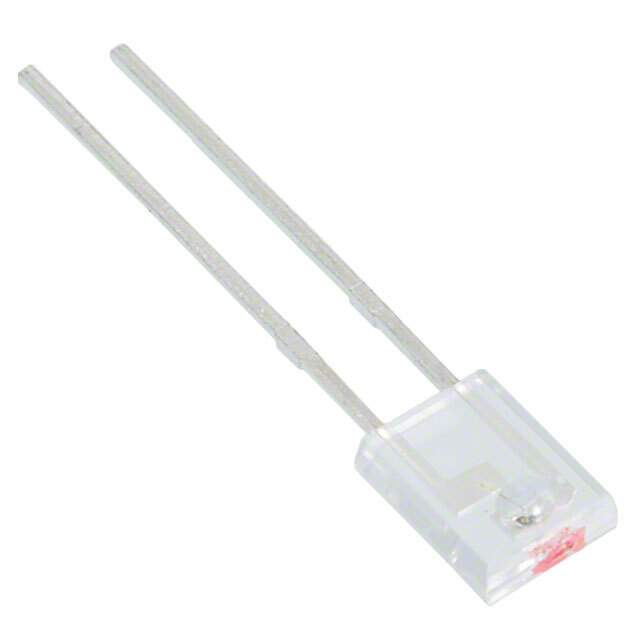

LTE-302-M Real Image
Same model may have multiple batches, images only for reference.

LTE-302-M

Part No LTE-302-M
Manufacturer Lite-On Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 50MA RADIAL / Infrared (IR) Emitter 940nm 1.2V 50mA 0.662mW/sr @ 20mA 40° Radial, Side View
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Lite-On Inc.
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 0.662mW/sr @ 20mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.2V
Viewing Angle 40°
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Radial, Side View
Base Product Number LTE-302
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names LTE302M,160-1930,LTE-302-M-ND
Standard Package 1,000
Win Source Part Number 1072707-LTE-302-M
Ultra Librarian 3D Model Ultra Librarian LTE-302-M CAD Model

Description

The Lite-On Inc. LTE-302-M is an infrared (IR) LED emitter with a wavelength of 940nm and a viewing angle of 40°.

  • Current-DC Forward (If): 50mA
  • Voltage-Forward (Vf): 1.2V
  • Mounting: through hole
  • Package/Case: radial, side view
  • Supply and Demand Status: shortage
