Same model may have multiple batches, images only for reference.

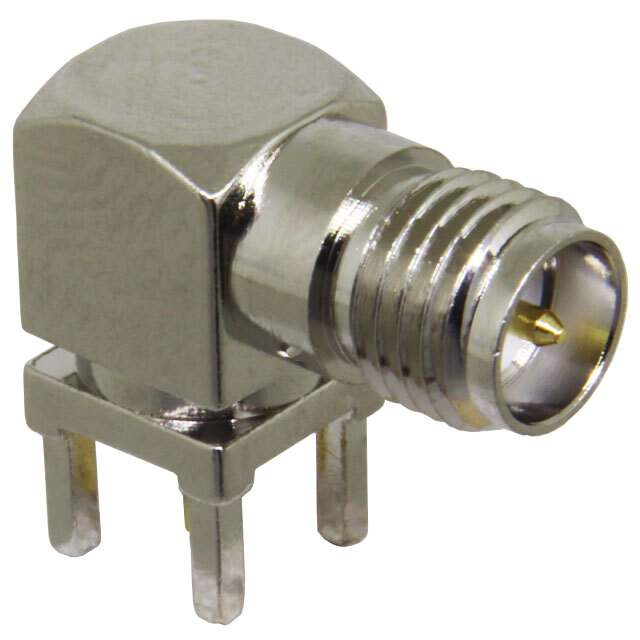

CONREVSMA002 Real Image
Same model may have multiple batches, images only for reference.

CONREVSMA002

Part No CONREVSMA002
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF)
Description CONN RP-SMA RCPT R/A 50 OHM PCB / RP-SMA Connector Receptacle, Male Pin 50Ohm Through Hole, Right Angle Solder
Datasheet
CONREVSMA002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Linx Technologies Inc.
Package Tray
Connector Style RP-SMA
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names CONREVSMA-002,CONREVSMA-002-ND,Q1235609D
Standard Package 100
Win Source Part Number 1011525-CONREVSMA002
Ultra Librarian 3D Model Ultra Librarian CONREVSMA002 CAD Model

Description

The CONREVSMA002 is a coaxial connector that is used in RF applications. It is manufactured by Linx Technologies Inc., a leading supplier of wireless components and solutions.

  • Connector Type: Receptacle, Male Pin
  • Fastening Type: Threaded
  • Temperature Range: -65°C ~ 165°C
  • Frequency - Max: 12.4 GHz
