The LTM8040IV#PBF is a versatile and robust μModule (micro-module) from Linear Technology, designed to provide efficient power management solutions for a wide array of applications. This compact, encapsulated device integrates a current-controlled LED driver and a step-down DC/DC converter, making it an ideal choice for driving LEDs with a constant current, as well as for general-purpose step-down voltage conversions.

Key Features

• Adjustable Current Control: The LTM8040IV#PBF allows users to set the LED current from 100mA to 1A, which can be adjusted via a single resistor. This feature provides flexibility for different LED configurations and ensures optimal efficiency.
• Wide Input Voltage Range: With an input voltage range of 4V to 36V, this device is suitable for a variety of power sources, including automotive, industrial, and battery-powered applications.
• High Efficiency: The integrated step-down converter operates with high efficiency, which minimizes power loss and heat generation, thus extending the life of the product.

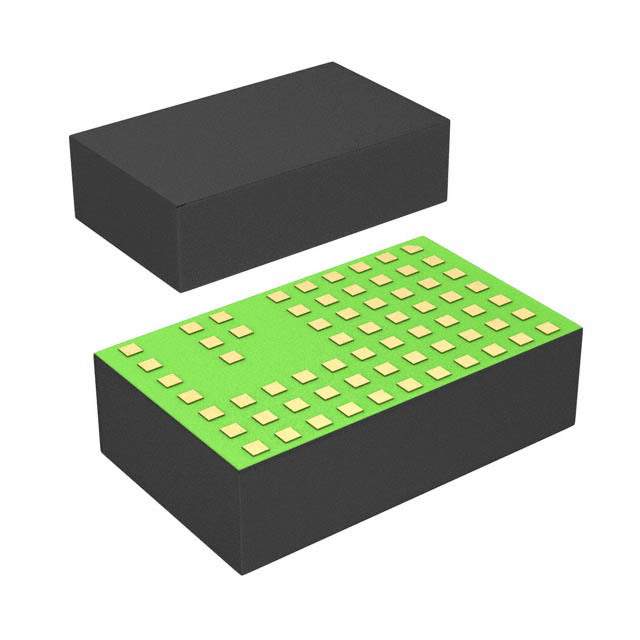

• Compact and Robust Design: The LTM8040IV#PBF comes in a compact, surface-mount LGA package, which is easy to integrate into space-constrained designs. Its robust construction ensures reliable performance even in harsh environments.
• Thermal Protection: The device includes over-temperature protection, safeguarding the module and the LEDs from damage due to excessive heat.

Applications

The LTM8040IV#PBF is well-suited for a range of applications, including:

• LED lighting and backlighting systems
• Automotive and avionics lighting
• Portable and battery-powered equipment
• Signage and decorative lighting
• Industrial displays and monitors

Overall, the LTM8040IV#PBF by Linear Technology is a reliable and efficient solution for driving LEDs and providing stable voltage conversion in a variety of electronic systems. Its ease of use and integration, combined with its robust feature set, make it an excellent choice for designers looking to enhance their power management capabilities.
