Introducing the LTM8021EV#PBF from Linear Technology

The LTM8021EV#PBF is a meticulously engineered micro-module from Linear Technology that offers a complete step-down switch mode power supply in a compact package. Designed for versatility and ease of use, this product encapsulates a switching regulator, inductor, and supporting components within its small footprint, making it an ideal solution for space-constrained applications.

Key Features

• Integrated Solution: The LTM8021EV#PBF combines a DC/DC controller, power switch, inductor, and all support components in one package, reducing design complexity and saving on board space.
• Wide Input Voltage Range: With an input voltage range of 3V to 36V, it is suitable for a variety of supply sources, from single-cell Li-Ion batteries to industrial rails.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to 10V, making the module highly adaptable for different needs.
• High Efficiency: The high efficiency of up to 96% allows for minimal heat generation, making it a reliable choice for thermally sensitive environments.

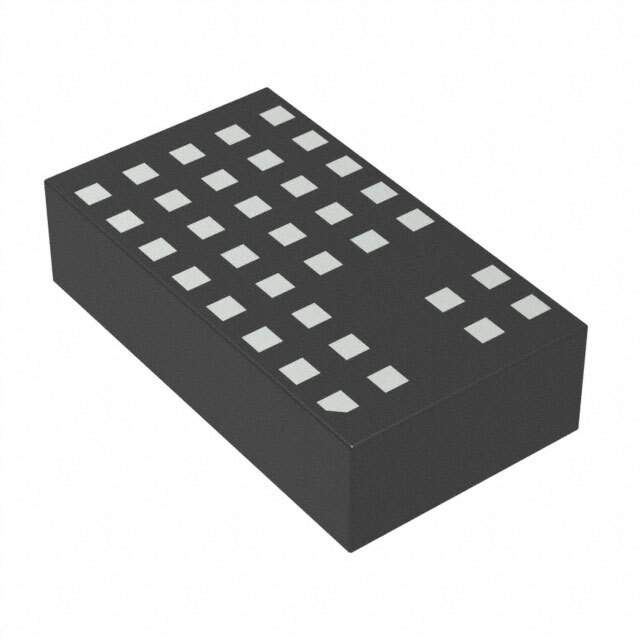

• Compact Design: The LTM8021EV#PBF comes in a small surface mount LGA package, which is ideal for automated assembly processes and applications with limited PCB space.

Applications

The versatile nature of the LTM8021EV#PBF makes it suitable for a wide range of applications, including but not limited to:

• Telecommunications
• Industrial equipment
• Automotive systems
• Data storage and networking systems
• Battery-powered devices

Reliability and Protection

The LTM8021EV#PBF is designed with protection features that ensure reliable operation under various conditions. It includes over-temperature protection and short-circuit protection, enhancing the safety and longevity of both the module and the end application. These features, along with the rugged design, make the LTM8021EV#PBF a dependable choice for mission-critical systems.

With its comprehensive integration, broad input voltage range, and adjustable output, the LTM8021EV#PBF by Linear Technology stands out as a powerful and convenient power management solution that streamlines the design process for engineers and product designers alike.
