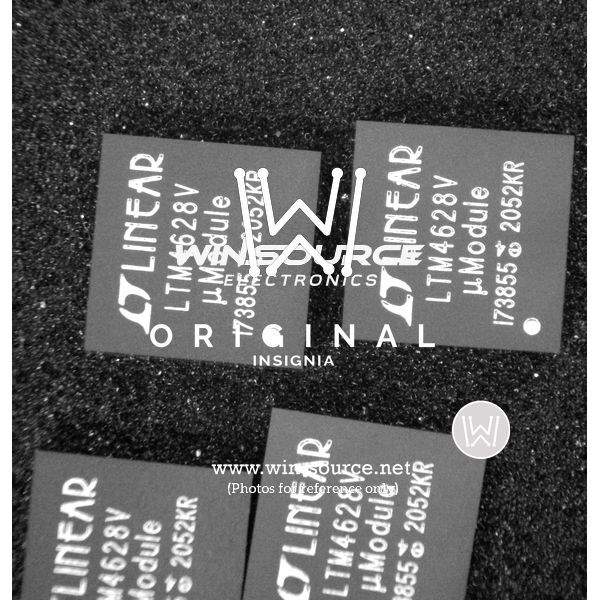

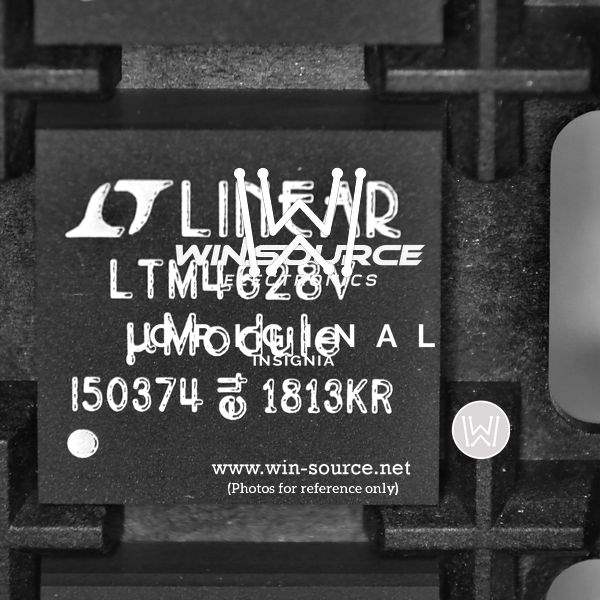

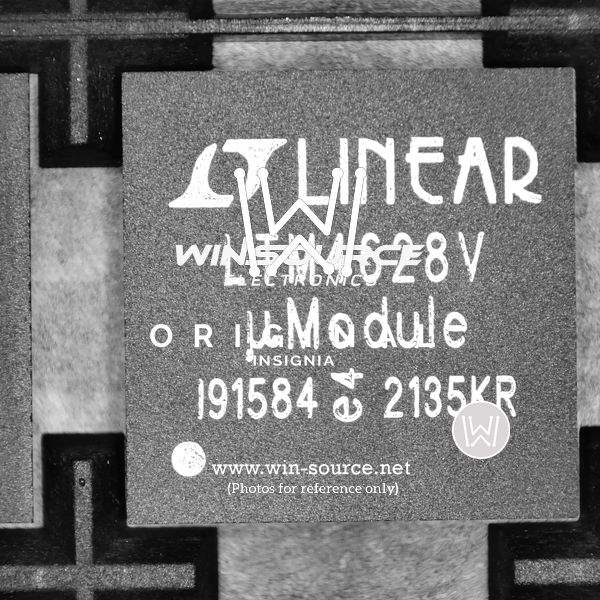

Overview of LTM4628EV#PBF

The LTM4628EV#PBF is a high-performance, dual 8A or single 16A output switching mode step-down DC/DC μModule (micromodule) regulator from Linear Technology. It is designed to deliver precision voltage regulation with a compact and efficient package, suitable for a wide range of applications including telecommunications, data processing, networking, and industrial systems.

Key Features

• Output Voltage Range: The device supports an adjustable output voltage range from 0.6V to 5.5V, which can be precisely set with external resistors.
• Input Voltage Range: It operates from an input voltage range of 3.1V to 20V, making it versatile for various supply conditions.
• Current Capability: The LTM4628EV#PBF can provide dual 8A outputs or can be configured to deliver a single 16A output, offering flexibility for different power requirements.
• High Efficiency: With its advanced design and integrated components, the module achieves high efficiency, which is critical for thermal management and energy savings.
• Compact Size: The device comes in a small form factor package, which is ideal for space-constrained applications.
• Thermal Performance: The package includes a built-in heat sink for improved thermal performance, allowing it to operate reliably over a wide temperature range.
• Protection Features: It features overvoltage, overcurrent, and overtemperature protection, ensuring the safety and longevity of both the regulator and the system it powers.

Applications

The LTM4628EV#PBF is suitable for use in a variety of applications, including but not limited to:

• Datacom and Telecom Systems
• Servers and Storage Systems
• Industrial Equipment
• Medical Devices
• Test and Measurement Instruments

Conclusion

The LTM4628EV#PBF from Linear Technology is a versatile and reliable power solution that combines performance, efficiency, and compact size. Its comprehensive feature set makes it an excellent choice for designers looking to simplify power management in complex systems without compromising on power or thermal performance.
