Product Overview: LTC485CS8#PBF

The LTC485CS8#PBF is a low power differential bus transceiver designed for multipoint data transmission standard RS485 applications. Manufactured by Linear Technology, now part of Analog Devices, this integrated circuit is engineered to provide reliable, high-speed communication for industrial, network, and other system applications where a robust serial data transmission line is required.

Key Features:

• Low Power Operation: The transceiver operates with very low power consumption, making it suitable for energy-sensitive applications.
• Single 5V Supply: It is designed to work with a single 5V power supply, simplifying the power design of the overall system.
• High-Speed Interface: With the capability to support up to 2.5Mbps data rates, the LTC485CS8#PBF is well-suited for high-speed data communication.
• Thermal Shutdown Protection: The device includes thermal shutdown protection to prevent damage from overheating.
• Driver and Receiver Enable: Separate enables for the driver and receiver allow the transceiver to be placed in a low power shutdown mode or to enable only the necessary sections of the chip.
• Pin-Compatible with Industry Standards: This transceiver is designed to be pin-compatible with popular industry standard RS485 transceivers, facilitating easy integration or replacement.

Applications:

The LTC485CS8#PBF is versatile and can be used in a variety of applications including, but not limited to:

• Networked Industrial Control Systems
• Factory Automation
• Building Automation and HVAC systems
• Data Acquisition Systems
• Security Systems

Package and Quality:

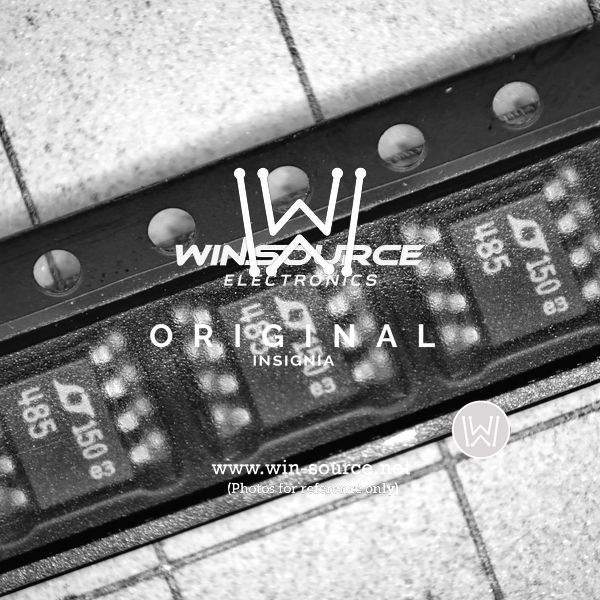

The LTC485CS8#PBF comes in an 8-lead SOIC package, which is both compact and easy to integrate into various designs. The product adheres to strict quality standards, ensuring reliable performance in demanding environments.

With its combination of low power consumption, high-speed data capabilities, and robust protection features, the LTC485CS8#PBF from Linear Technology is an excellent choice for any RS485 communication application.
