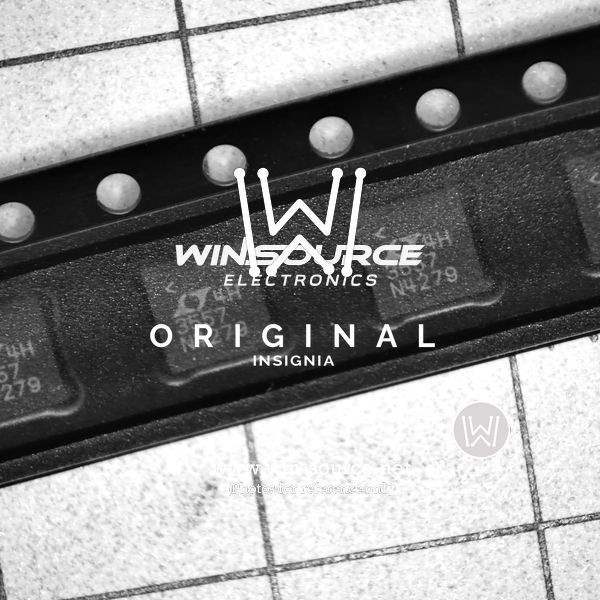

The LTC3557EUF#TRPBF is a highly integrated power management and battery charger IC designed to cater to the needs of multi-function handheld devices. Manufactured by Linear Technology, this component features a compact, low-profile 24-pin QFN package and is tailored to simplify the power supply design by integrating multiple regulators and power management functions into a single chip.

Key Features

• Integrated Battery Charger: The LTC3557 includes a standalone linear charger with programmable charge current up to 950mA, which allows for efficient charging of single-cell Li-Ion or Li-Polymer batteries.
• Multiple Regulators: It boasts three high-efficiency synchronous step-down regulators with an output current capability of 400mA, 400mA, and 600mA respectively, providing versatile power supply options for various system components.
• PowerPath Control: The IC features PowerPath control, which seamlessly manages power between the battery and external sources, ensuring uninterrupted operation even when the battery is being charged.
• Overvoltage Protection: The LTC3557EUF#TRPBF is equipped with overvoltage protection, safeguarding the device and the system from voltage spikes.
• Thermal Regulation: To maintain system stability, the chip includes thermal regulation, which reduces battery charge current if the die temperature approaches a preset threshold.
• Autonomous Operation: Designed for ease of use, the IC can operate autonomously without the need for external control signals, simplifying the integration into the end product.

Applications

The LTC3557EUF#TRPBF is ideal for portable devices requiring multiple power domains such as smartphones, portable media players, GPS devices, and other handheld applications. Its ability to provide multiple regulated outputs, along with an integrated battery charger, makes it an all-in-one power management solution for space-constrained devices.

Quality and Reliability

Linear Technology ensures that the LTC3557EUF#TRPBF meets the highest quality and reliability standards. The product is designed for long-term performance and is suitable for a wide range of temperature environments, making it a reliable choice for designers looking to enhance the power efficiency and battery life of their portable applications.
