LTC2954ITS8-2#TRMPBF - Push Button On/Off Controller

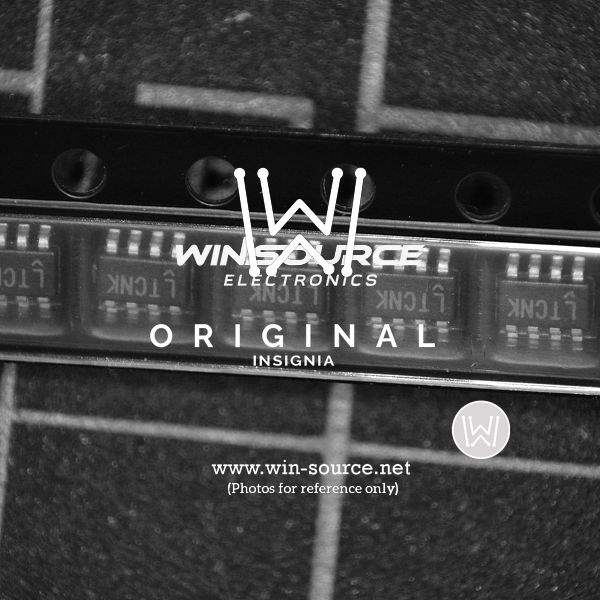

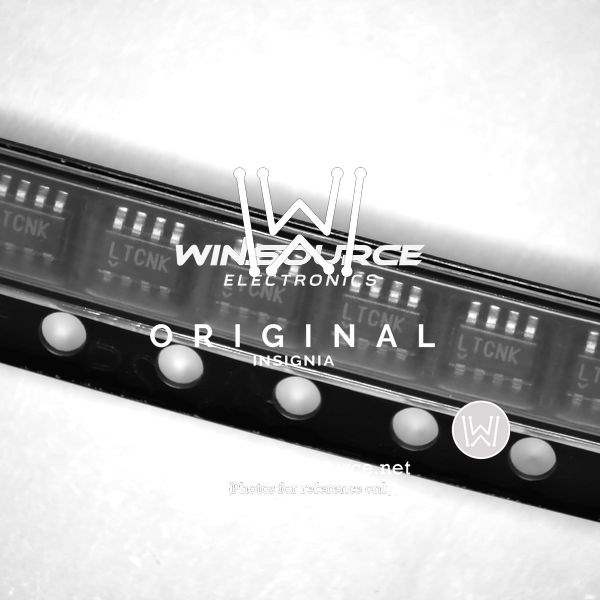

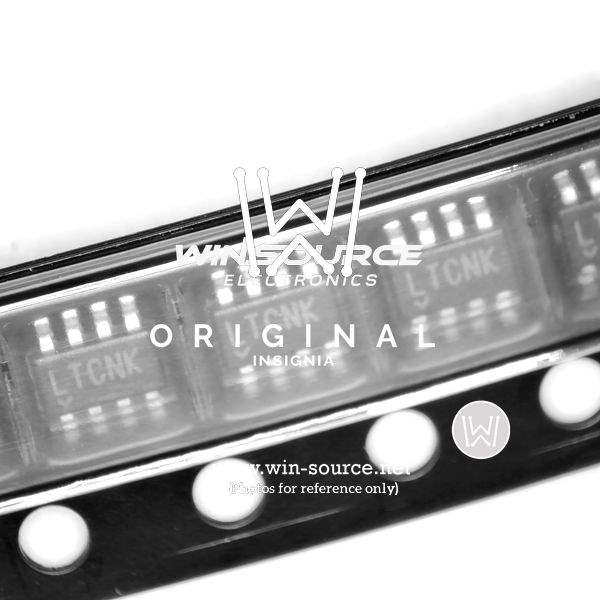

The LTC2954ITS8-2#TRMPBF is a sophisticated push button on/off controller from Linear Technology, designed to manage the power sequence of electronic systems. This compact component, available in a TSOT-23 package, offers a simple yet highly effective solution for controlling system power through an external push button interface.

With an operating voltage range of 2.7V to 26.4V, the LTC2954 is versatile enough to accommodate a wide array of applications, from portable devices to automotive electronics. It ensures that systems are turned on and off in a safe and controlled manner, preventing any unintended disruptions that could lead to data loss or hardware damage.

Key Features:

• Adjustable Turn-On Threshold: The turn-on threshold can be adjusted to match the requirements of the application, ensuring reliable operation under different conditions.
• Adjustable Turn-Off Timer: A programmable turn-off timer allows designers to set a delay before the system powers down after the button is pressed, offering additional flexibility and preventing accidental shutdowns.
• Under-Voltage Lockout: The LTC2954 includes an under-voltage lockout feature that prevents the system from operating under inadequate power conditions, which could otherwise lead to unpredictable behavior.
• Minimal External Components: The design requires minimal external components, which simplifies the circuit design and helps reduce the overall bill of materials.
• Low Quiescent Current: With a low quiescent current, the LTC2954 ensures minimal power consumption when the system is in standby mode, making it an energy-efficient choice for battery-powered applications.

The LTC2954ITS8-2#TRMPBF also features a status output that can be used to drive an external LED, providing a visual indication of the system's power state. This can be particularly useful for end-users to identify the operational status of the device at a glance.

Overall, the LTC2954ITS8-2#TRMPBF is a reliable and user-friendly solution for power management in modern electronic systems. Its integration can lead to enhanced system stability, prolonged battery life, and an improved user experience.
