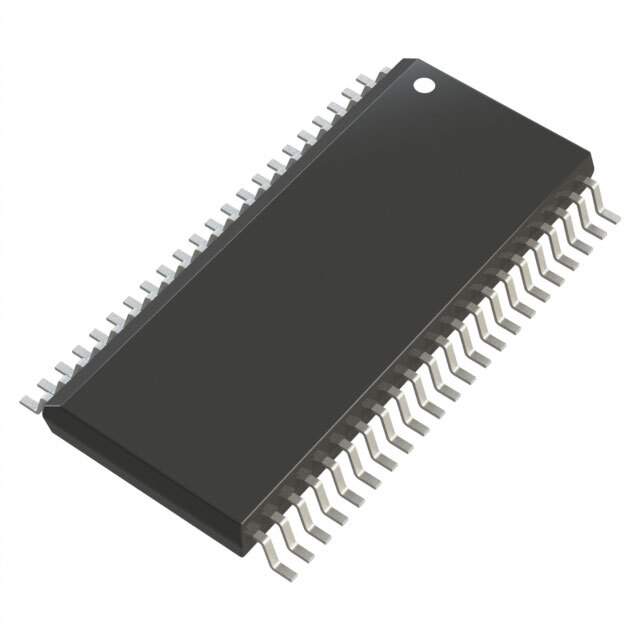

The LTC2704CGW-12#PBF is a high-performance quad 12-bit digital-to-analog converter (DAC) from Linear Technology, designed to deliver precision and ease of use in a variety of applications. This device offers four independent DAC channels, each capable of converting digital input into a corresponding analog voltage output with exceptional accuracy and stability.

Key Features:

• Resolution: 12-bit resolution provides fine granularity, allowing for precise control over the analog output.
• Rail-to-Rail Output: The DACs can output voltages from 0V to the supply voltage, maximizing dynamic range and enabling use in a wide range of applications.
• I²C Interface: The integrated I²C interface facilitates easy communication with microcontrollers and other digital systems, supporting standard, fast, and high-speed modes.
• Multiple Output Ranges: The device supports unipolar and bipolar output ranges, giving designers flexibility in system design.
• Low Power Consumption: Designed for power-sensitive applications, the LTC2704CGW-12#PBF offers low power operation, reducing the overall system power budget.
• Integrated Reference: An onboard precision reference voltage ensures accurate and stable output voltages over time and temperature variations.

Applications:

The LTC2704CGW-12#PBF is ideal for a wide range of applications where precise digital control of analog signals is required. Typical applications include:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Industrial Control Systems
• Process Control
• Digital Gain and Offset Adjustment

Quality and Reliability:

Linear Technology's commitment to quality ensures that the LTC2704CGW-12#PBF meets stringent industry standards for performance and reliability. The device is available in a GW package, and its lead-free composition complies with RoHS standards, making it suitable for use in environmentally-conscious applications.
