LTC2602IMS8#PBF Dual 16-Bit Rail-to-Rail DAC from Linear Technology

The LTC2602IMS8#PBF is a high-precision, dual 16-bit Digital-to-Analog Converter (DAC) designed by Linear Technology to offer exceptional performance with rail-to-rail output capabilities. This component is ideal for sophisticated applications that require precise voltage control and a high degree of programmability.

Key Features

• High Resolution: The 16-bit resolution of the LTC2602IMS8#PBF allows for fine-grain voltage output, making it suitable for applications that demand exacting levels of accuracy.
• Dual DAC Channels: Equipped with two independent DACs, this device provides versatility in managing multiple output voltages simultaneously, which is beneficial for complex systems.
• Rail-to-Rail Output: The ability to output voltages from 0V to the supply voltage ensures maximum dynamic range, making the device ideal for direct control of a wide range of analog circuits.
• Low Power Consumption: The LTC2602IMS8#PBF has been engineered for energy efficiency, which is crucial for battery-powered devices and power-sensitive applications.
• Software Selectable Power-Down: This feature allows individual DACs to be powered down through software commands, further conserving energy when not in use.
• Flexible Power Supply: The DAC can operate from a single 2.7V to 5.5V supply, accommodating various system power requirements.

Applications

The LTC2602IMS8#PBF is suitable for a range of applications, including:

• Precision voltage control in automated test equipment
• Programmable voltage and current sources
• Gain and offset adjustment in data acquisition systems
• Process control and industrial automation
• Automotive systems requiring high accuracy signal generation

Package and Quality

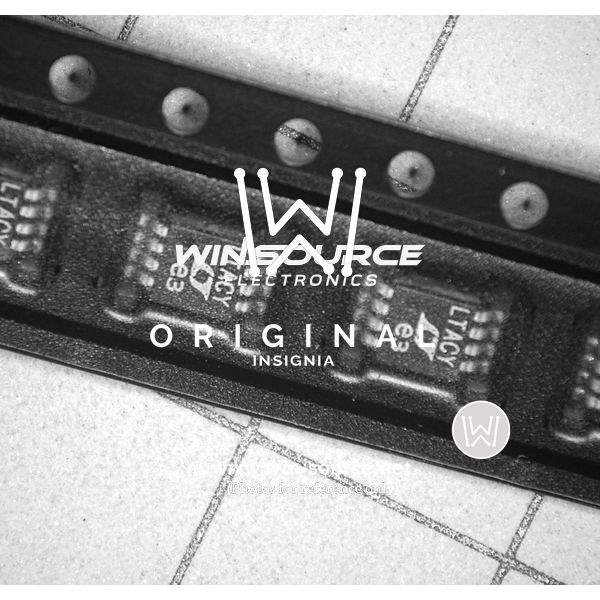

The LTC2602IMS8#PBF is offered in a compact MSOP-8 package, which is ideal for space-constrained applications. Linear Technology ensures high-quality standards, and the device is designed for robust performance in demanding environments.

With its combination of high resolution, dual-channel output, rail-to-rail capability, and power efficiency, the LTC2602IMS8#PBF is a strong choice for designers looking to integrate precise analog control within their electronic systems.
