The LTC2206CUK#PBF is a high-performance, 16-bit, 130Msps analog-to-digital converter (ADC) from Linear Technology, now part of Analog Devices. It is designed to deliver exceptional accuracy and speed for a wide range of applications, including communications, imaging systems, and medical equipment.

Key Features

• High Sampling Rate: The LTC2206CUK#PBF offers a sampling rate of up to 130 mega-samples per second (Msps), allowing for high-speed signal processing.
• Resolution: With 16-bit resolution, it provides detailed digital representation of the input signal, ensuring high fidelity and low noise performance.
• Dynamic Range: This ADC features a large dynamic range, which is crucial for applications requiring the detection of both strong and weak signals within the same signal acquisition.
• Differential Inputs: The differential input structure enhances common-mode noise rejection and improves the signal-to-noise ratio, which is beneficial in noisy environments or when dealing with small signals.
• No Missing Codes: It guarantees no missing codes over the full operating temperature range, ensuring reliable and consistent performance.
• Power Efficiency: The device is designed for low power consumption, making it suitable for power-sensitive applications.

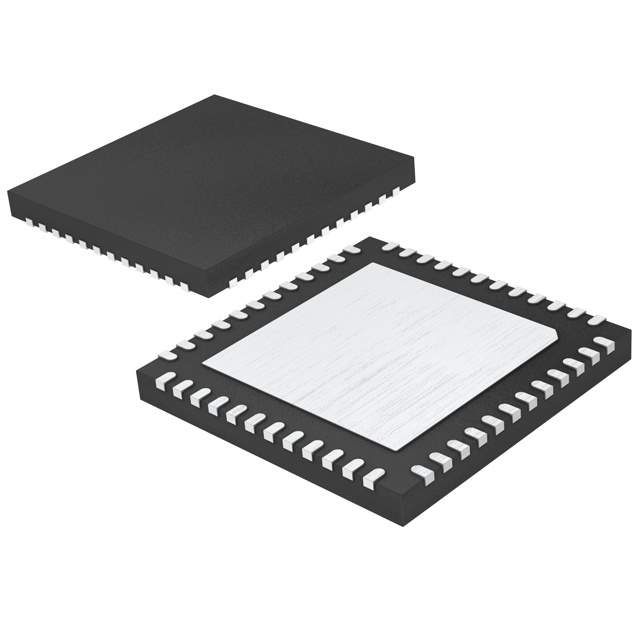

• Packaging: The LTC2206CUK#PBF comes in a 48-pin QFN package, which is compact and suitable for space-constrained applications.

Applications

The LTC2206CUK#PBF is versatile and can be used in a variety of applications, such as:

• Wireless and Wired Broadband Communications
• Radar and Satellite Communication Systems
• High-speed Data Acquisition Systems
• Medical Imaging Equipment
• Instrumentation and Test Equipment

Technical Specifications

Some of the technical specifications of the LTC2206CUK#PBF include:

• Supply Voltage: 1.8V to 3.3V
• Operating Temperature Range: -40°C to +85°C
• SNR (Signal to Noise Ratio): 76.4dB
• SFDR (Spurious-Free Dynamic Range): 90dB

Overall, the LTC2206CUK#PBF is a robust and reliable ADC that offers high-speed and precision data conversion, suitable for advanced digital processing requirements.
