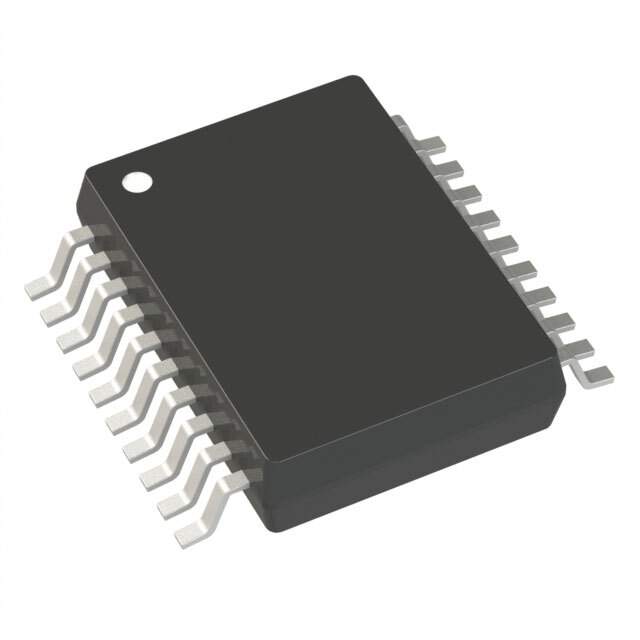

Linear Technology LTC1562AIG Active RC Quad Universal Filter

The LTC1562AIG is a highly versatile active RC filter component designed by Linear Technology, renowned for its exceptional performance in signal processing applications. This quad universal filter is part of the LTC1562 series, which is well-regarded for its ease of use and flexibility in configuring various filter types.

Constructed with advanced silicon technology, the LTC1562AIG offers a significant advantage in terms of its low noise and low distortion characteristics. These features make it an ideal choice for precision filtering tasks in a wide array of electronic products, ranging from professional audio equipment to sophisticated communication systems.

One of the standout attributes of the LTC1562AIG is its ability to operate without the need for any external resistors or capacitors to set the filter frequency. This is achieved through its internal resistor ladder and capacitor array, which not only simplifies the design process but also enhances the reliability of the final application by reducing the number of external components required.

The LTC1562AIG supports a broad range of filter configurations, including low-pass, high-pass, band-pass, and notch filters. The flexibility to configure multiple filter types with a single component allows designers to streamline their inventory and reduce the complexity of their designs. Additionally, the device provides a clock-tunable frequency range, enabling users to dynamically adjust the filter characteristics as needed for their specific application.

This filter operates over a wide supply voltage range, from ±2.5V to ±6.5V, and its class AB output stage ensures a high drive capability while maintaining low power consumption. The LTC1562AIG is housed in a 20-pin SSOP package, which is suitable for space-constrained applications while providing adequate thermal performance.

In summary, the LTC1562AIG from Linear Technology is a sophisticated and flexible solution for designers looking to implement high-quality, reliable filtering in their electronic systems. With its integrated components, wide tuning range, and excellent performance characteristics, it stands as a top choice for professionals in the field.
