LT4356HDE-1#TRPBF - Surge Stopper from Linear Technology

The LT4356HDE-1#TRPBF is a sophisticated surge stopper device designed to protect sensitive electronics against high voltage surges and temporary overvoltage conditions. This component is part of Linear Technology's robust protection solutions, which are engineered to shield electronic systems from destructive voltage transients and faults.

Featuring a wide operating voltage range, the LT4356HDE-1#TRPBF can handle input voltages from 4V to 80V, making it versatile for a broad spectrum of applications, including automotive, industrial, avionics, and power supply systems. The device is capable of withstanding surges up to 100V, ensuring reliable operation even under extreme conditions.

One of the key features of the LT4356HDE-1#TRPBF is its ability to control an external N-channel MOSFET to act as a series pass element. This configuration enables it to respond quickly to overvoltage events by limiting the output voltage to a safe level, thereby protecting downstream components from damage. The surge stopper maintains a constant output during overvoltage lockout, ensuring that the load continues to receive power without interruption.

The LT4356HDE-1#TRPBF also includes an adjustable overcurrent protection feature. This allows designers to set a current limit threshold to prevent excessive current draw, which could otherwise lead to thermal stress and potential failure of the system. The device's fault timer provides an additional layer of protection by limiting the duration of overcurrent conditions, reducing the risk of prolonged exposure to damaging conditions.

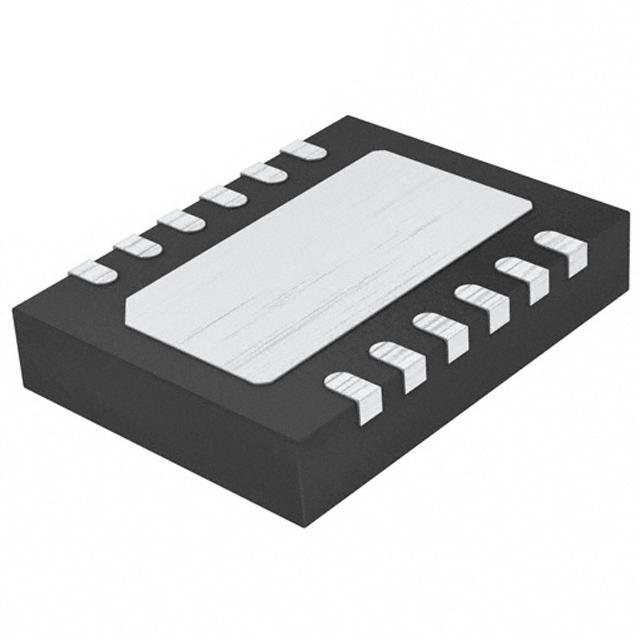

For enhanced reliability, the LT4356HDE-1#TRPBF is offered in a thermally efficient 12-lead 4mm × 3mm DFN package, ensuring excellent heat dissipation and a compact footprint for space-constrained applications. The part is also available in a tape and reel package, denoted by the TRPBF suffix, which facilitates automated assembly processes for high-volume production.

Overall, the LT4356HDE-1#TRPBF surge stopper is a critical component for any design requiring robust voltage and current protection. Its advanced features and reliable performance make it an ideal choice for safeguarding sensitive electronic equipment against unpredictable and potentially damaging electrical transients.
