LT3970EDDB-3.3#TRMPBF - Linear Technology

The LT3970EDDB-3.3#TRMPBF is a robust and versatile step-down switching regulator from Linear Technology, designed to deliver a fixed 3.3V output from a wide input voltage range. This high-efficiency power solution is ideal for a variety of applications, including portable devices, automotive systems, and industrial equipment.

Key Features:

• Wide Input Voltage Range: Capable of operating from an input voltage of 4.3V to 38V, the LT3970EDDB-3.3#TRMPBF is suitable for systems with varying power supplies, including automotive battery voltage fluctuations.
• Fixed 3.3V Output: The device provides a stable and regulated 3.3V output, which is a common voltage requirement for digital circuits and microcontrollers.
• High Efficiency: With its internal 2A switch, the regulator maintains high efficiency at different load conditions, which is critical for battery-powered applications to extend battery life.
• Burst Mode® Operation: The innovative Burst Mode® operation ensures low quiescent current, making it an excellent choice for power conservation in battery-operated systems.
• Thermal Protection: The built-in thermal protection safeguards the device against overheating, enhancing its reliability and longevity.
• Adjustable Switching Frequency: The switching frequency can be set between 200kHz to 2.4MHz or synchronized to an external clock, allowing flexibility in design to optimize performance and component size.

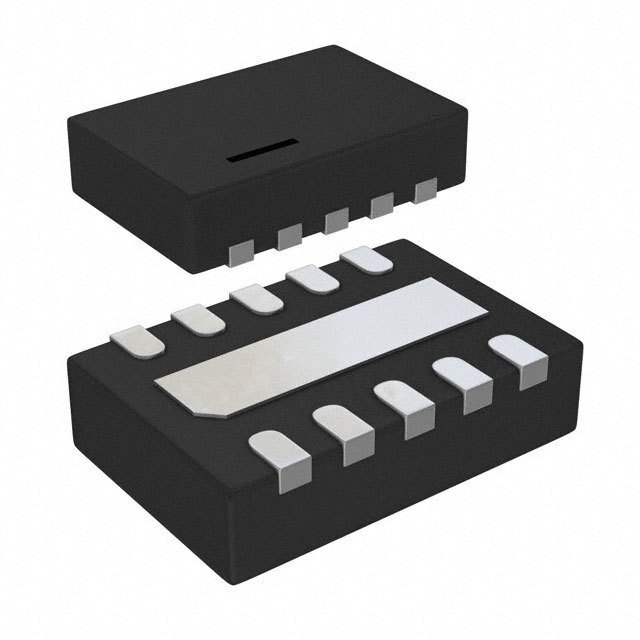

• Compact Package: Housed in a small 10-lead (3mm x 3mm) DFN package, the LT3970EDDB-3.3#TRMPBF saves valuable board space in space-constrained applications.

Applications:

• Automotive and Industrial Power Systems
• Portable Handheld Instruments
• Embedded Systems
• Point-of-Load Power Supplies

The LT3970EDDB-3.3#TRMPBF by Linear Technology stands out for its reliability, flexibility, and efficiency, making it an excellent choice for designers seeking a high-performance power management solution. Its ability to handle wide input voltages, along with a fixed output, thermal protection, and space-saving design, ensures that it can meet the stringent requirements of a broad range of electronic applications.
