Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Applications Current Feedback
Number of Circuits 1
-3db Bandwidth 40MHz
Slew Rate 300 V/μs
Operating Supply Current 14.5mA
Channel Output Current 40mA
Supply Voltage - Operating 5 V to 30 V, ±2.5 V to 15 V
Mounting Through Hole

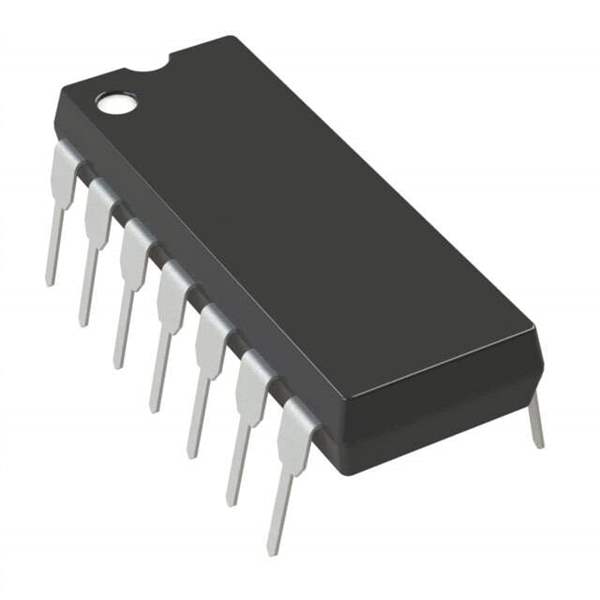

Case / Package 14-PDIP
Win Source Part Number 206719-LT1256CN
Ultra Librarian 3D Model Ultra Librarian LT1256CN CAD Model

Description

Linear Technology's LT1256CN High-Speed Video Multiplexer

The LT1256CN is a state-of-the-art high-speed video multiplexer from Linear Technology, designed to meet the demanding requirements of video signal routing. It is a dual, 2-channel (4:2) multiplexer, which allows users to select one of two inputs for each channel through digital control. The LT1256CN is optimized for excellent video performance and is capable of handling high-frequency video signals with minimal distortion and high linearity.

This multiplexer is housed in a 16-pin PDIP (Plastic Dual In-line Package), making it suitable for a wide range of applications including video editing suites, broadcast equipment, and any other video processing systems that require high-speed, high-quality video switching. The LT1256CN operates over a supply voltage range of ±5V, which is standard for many video applications, ensuring easy integration into existing designs.

Key features of the LT1256CN include:

  • Wide Bandwidth: The LT1256CN boasts a wide bandwidth that supports high-resolution video signals, ensuring that the quality of the video is maintained through the switching process.
  • Low Crosstalk: Crosstalk between channels is minimized, which is critical for maintaining the integrity of closely packed video signals.
  • High Off Isolation: The device provides high isolation when switched off, preventing unwanted signals from leaking through to the output.
  • Low Distortion: The LT1256CN is designed to offer low differential gain and phase error, which is vital for maintaining the color fidelity and sharpness of video images.
  • TTL/CMOS Compatible: The control inputs are compatible with standard TTL and CMOS logic levels, allowing for easy control from a microprocessor or digital logic.

Linear Technology's LT1256CN is built with the quality and reliability that professionals expect from a leading manufacturer in the industry. Whether for professional video switching applications or high-performance video processing systems, the LT1256CN delivers the performance needed to ensure that video signals are switched cleanly and without compromise.

For designers and engineers looking for a robust and high-quality video multiplexer, the LT1256CN from Linear Technology is an excellent choice that combines performance with reliability.
