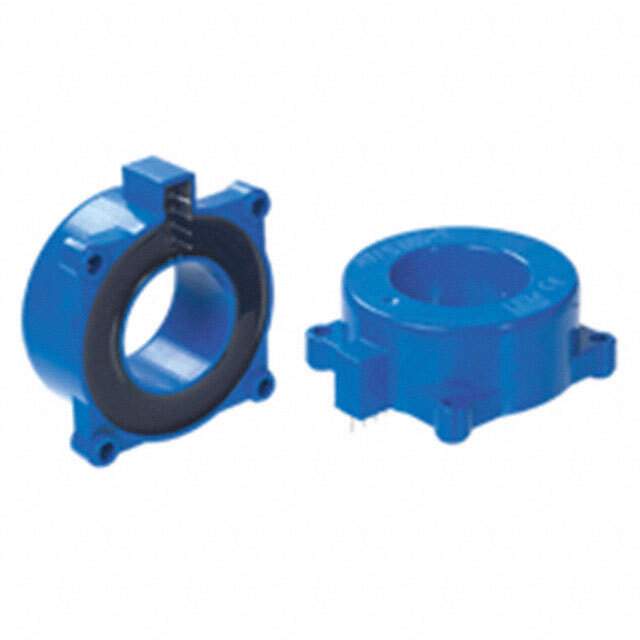

The LEM HTFS800-P is a current transducer for electronic measurement of current in electrical installations.

Applications:

• Variable Speed Drives: Current measurement in motor drives for feedback control.
• Power Supplies: Monitoring current in power supply circuits.
• Battery Management Systems (BMS): Measuring charge and discharge current in battery systems.
• Uninterruptible Power Supplies (UPS): Current monitoring in UPS systems.
• Welding Equipment: Measuring welding current for process control.

Features:

• Closed Loop (Compensated) Technology: Provides high accuracy and linearity.
• Galvanic Isolation: Offers electrical isolation between the primary and secondary circuits.
• High Accuracy: Provides precise current measurement.
• Low Temperature Drift: Maintains accuracy over a wide temperature range.
• Compact Design: Small form factor for easy integration.

Benefits:

• Accurate Measurement: Enables precise current monitoring and control.
• Enhanced Safety: Galvanic isolation protects the measurement circuit.
• Reliable Operation: Provides stable and reliable performance.
• Easy to Use: Simple integration into existing systems.
• Cost-Effective: Offers a cost-effective solution for current measurement.

The HTFS800-P's closed-loop technology ensures high accuracy and linearity in current measurement. The galvanic isolation provides electrical isolation between the primary conductor and the measurement circuit, protecting the measurement equipment from high voltages and transients. The low temperature drift ensures that the accuracy of the measurement is maintained over a wide temperature range. The compact design makes it easy to integrate into existing systems. It is used in various applications to monitor and control current, ensuring efficient and safe operation of electrical equipment.

Technical specifications include the measuring range, accuracy, linearity, isolation voltage, and operating temperature range. Consult the manufacturer's datasheet for detailed technical specifications.
