Same model may have multiple batches, images only for reference.

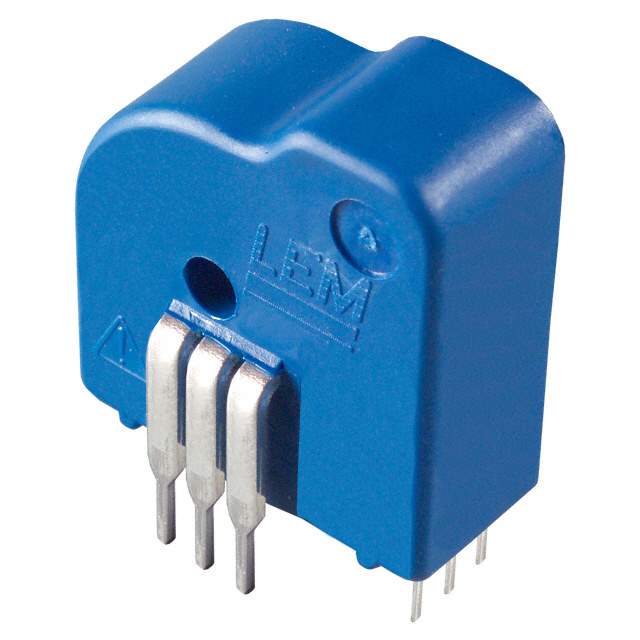

LTS 25-NP Real Image
Same model may have multiple batches, images only for reference.

LTS 25-NP

Part No LTS 25-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 25A AC/DC
Datasheet
LTS 25-NP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series LTS
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 25A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 25mV/A
Frequency DC ~ 200kHz
Linearity ±0.1%
Accuracy ±0.2%
Operating Supply Voltage 5V
Response Time 0.4μs
Operating Temperature Range -40°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Package Ring Opening 0.126" Dia, 6 Leads
Win Source Part Number 784685-LTS 25-NP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian LTS 25-NP CAD Model

Description

The LTS 25-NP is a semiconductor product manufactured by LEM USA Inc.

  • Supply: Limited
  • Popularity: Medium
  • Output: Ratiometric, voltage
  • Frequency Range: DC to 200kHz
  • Sensitivity: 25mV/A
  • Linearity: ±0.1%
  • Accuracy: ±0.2%
  • Sensor Type: Closed-loop Hall effect
