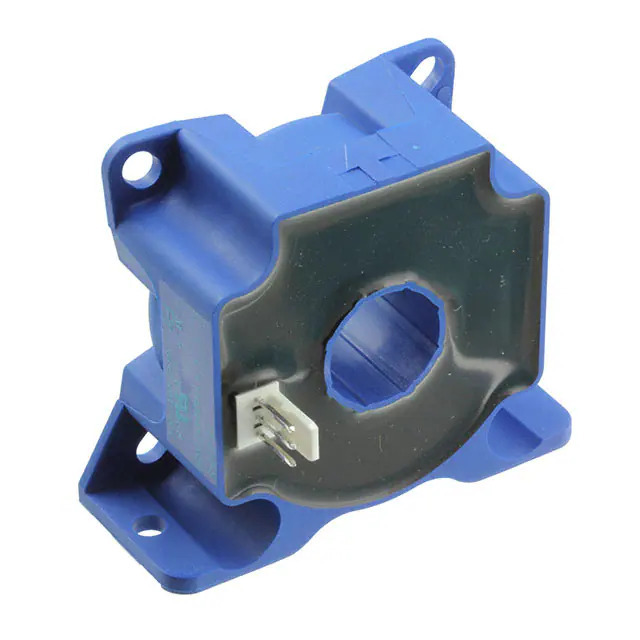

Same model may have multiple batches, images only for reference.

LF 210-S

Name: LF 210-S
Brand: LEM USA Inc.
SKU: 1356938
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LF 210-S
Manufacturer	LEM USA Inc.
Catalog	Current Transducers
Description	CUR TRANSDUCER CLO LOOP 200A / Current Sensor 200A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers - Current Sensors
Mfr	LEM USA Inc.
Series	LF
Package	Bulk
Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Closed Loop
Current - Sensing	200A
Number of Channels	1
Output	Ratiometric, Current
Sensitivity	0.5mA/A
Frequency	100kHz
Linearity	±0.05%
Accuracy	±0.2%
Voltage - Supply	11.4V ~ 15.75V
Response Time	0.5µs
Current - Supply (Max)	35mA
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bidirectional
Mounting Type	Panel Mount
Package / Case	Module, Single Pass Through
Supplier Device Package	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	9030.33.3800
Win Source Part Number	1356938-LF 210-S
Ultra Librarian 3D Model	Ultra Librarian LF 210-S CAD Model

Description

The LF 210-S is a current sensor module from LEM USA Inc.

Series: LF
Temperature Range: -40°C to 85°C
Frequency Response: 100kHz
Mounting Type: Panel Mount
Package: Bulk
Current Measurement: AC and DC currents up to 200A
Accuracy: ±0.2%
Output: Ratiometric Current
Response Time: 0.5μs
Product Status: Active
