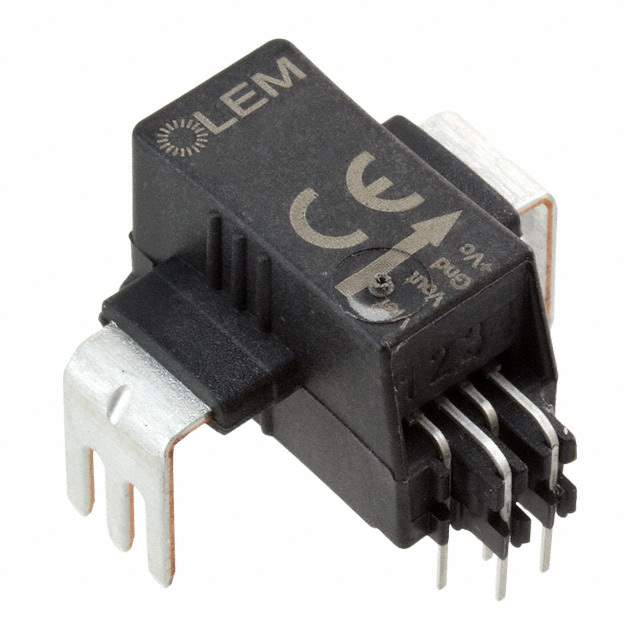

HLSR 32-P Real Image HLSR 32-P Real Image
Same model may have multiple batches, images only for reference.
HLSR 32-P Real Image HLSR 32-P Real Image
HLSR 32-P Real Image HLSR 32-P Real Image
Same model may have multiple batches, images only for reference.

HLSR 32-P

Part No HLSR 32-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 32A AC/DC / Current Sensor 32A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series HLSR-P
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 32A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 25mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 5V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1123,HLSR32P,90.J3.J3.000.0
Standard Package 50
Win Source Part Number 1002172-HLSR 32-P
Ultra Librarian 3D Model Ultra Librarian HLSR 32-P CAD Model

Description

The HLSR-P series current sensor from LEM USA Inc. is a hall effect, open loop sensor with bidirectional polarization that can measure AC/DC current up to 32A.

  • Type: Hall Effect, Open Loop
  • Polarization: Bidirectional
  • Current Measurement: AC/DC up to 32A
  • Sensitivity: 25mV/A
  • Linearity: ±0.5%
  • Accuracy: ±1%
  • Response Time: 2.5μs
  • Output Signal: Ratiometric Voltage
  • Supply Voltage: 5V
  • Maximum Current Draw: 25mA
  • Mounting: Through Hole
  • Package: Module
  • Standard Package: 50 units
  • Application: Current Measurement
