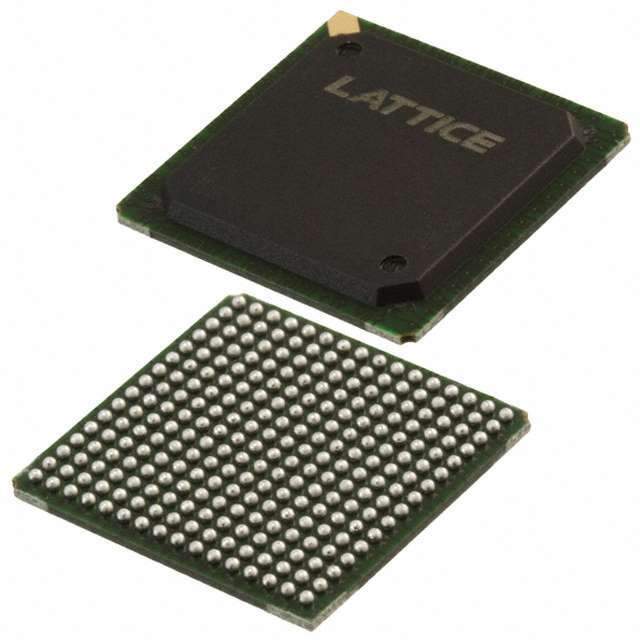

M4A3-256/128-55FAC Real Image
Same model may have multiple batches, images only for reference.

M4A3-256/128-55FAC

Part No M4A3-256/128-55FAC
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 5.5NS 256FBGA /
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Lattice Semiconductor Corporation
Series ispMACH® 4A
Package Tray
Product Status Obsolete
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.5 ns
Voltage Supply - Internal 3V ~ 3.6V
Number of Macrocells 256
Number of I/O 128
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)
Package / Case 256-BGA
Supplier Device Package 256-FPBGA (17x17)
Base Product Number M4A3-256
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 90
Win Source Part Number 1187968-M4A3-256/128-55FAC
Ultra Librarian 3D Model Ultra Librarian M4A3-256/128-55FAC CAD Model

Description

The M4A3-256/128-55FAC is an ispMACH® 4A CPLD from Lattice Semiconductor Corporation.

  • I/O: 128
  • Macrocells: 256
  • Programmable: Yes
  • In-System Programmable: Yes
  • Delay Time tpd(1) max: 5.5 ns
  • Voltage Supply: 3V ~ 3.6V
  • Status: Obsolete
  • RoHS Compliant: No
