The LFXP2-17E-6FTN256C is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor Corporation, belonging to the LatticeXP2 family. This FPGA is designed for a wide range of applications requiring flexible and high-performance logic solutions.

Applications:

• Industrial Automation: Used in programmable logic controllers (PLCs), motor control, and machine vision systems.
• Communication Systems: Employed in networking equipment, wireless communication devices, and signal processing applications.
• Consumer Electronics: Found in digital cameras, video processing systems, and display controllers.
• Medical Devices: Suitable for medical imaging equipment and diagnostic tools.

Features:

• 17,000 Logic Cells: Provides a significant amount of programmable logic for implementing complex digital circuits.
• Embedded Block RAM: Offers on-chip memory resources for data storage and processing.
• High-Performance I/O: Supports a wide range of I/O standards, including LVCMOS, LVTTL, and differential signaling.
• sysIO Buffers: Provides flexible I/O configuration and impedance control.
• Advanced Security Features: Includes bitstream encryption to protect designs from unauthorized access.
• On-Chip Oscillator: Simplifies system design by providing a built-in clock source.
• IEEE 1149.1 (JTAG) Boundary Scan: Supports standard JTAG testing for manufacturing and debugging.

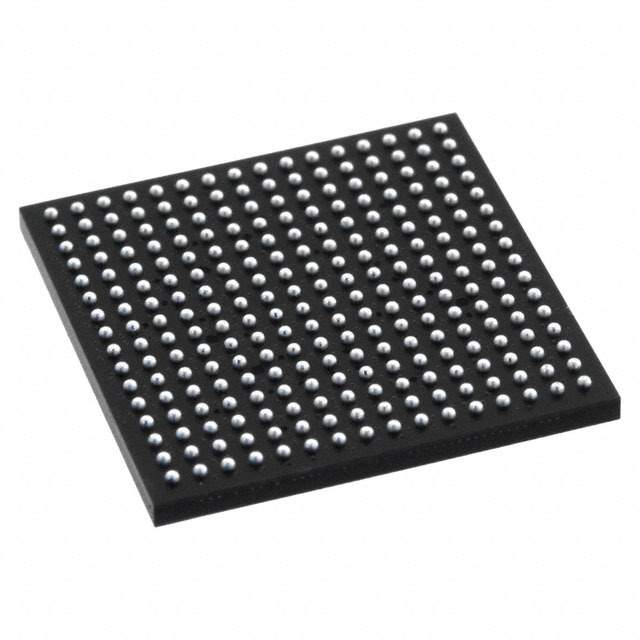

• Advanced Packaging: Available in a 256-pin FTN (Fine-Pitch Ball Grid Array) package.

Benefits:

• Flexibility: Allows for easy customization and reconfiguration of digital circuits.
• High Performance: Provides high-speed operation for demanding applications.
• Low Power Consumption: Optimized for low power operation.
• Security: Protects designs from reverse engineering and unauthorized copying.
• Fast Time-to-Market: Reduces development time by allowing for rapid prototyping and design iterations.

Additional Details:

The LFXP2-17E-6FTN256C operates at a core voltage of 1.2V. It supports a wide range of operating temperatures. The device is supported by Lattice's development tools, including the Diamond design software. The FPGA is designed for applications requiring a balance of performance, power consumption, and cost. It is also suitable for applications requiring high levels of security. The FTN256 package offers a small footprint and excellent thermal performance. Detailed datasheets and application notes are available from Lattice Semiconductor.
