Same model may have multiple batches, images only for reference.

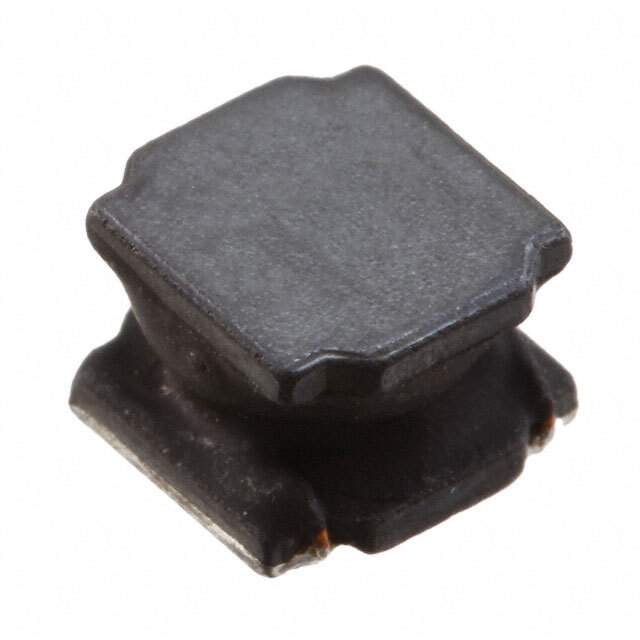

TYS6045680M-10 Real Image
Same model may have multiple batches, images only for reference.

TYS6045680M-10

Part No TYS6045680M-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 289 MOHM SMD / 68 µH Shielded Inductor 1 A 289mOhm Nonstandard
Datasheet
TYS6045680M-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 289mOhm
Frequency - Self Resonant 6.4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.185" (4.70mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 240-2747-6,240-2747-1,240-2747-2
Standard Package 1,500
Win Source Part Number 1327369-TYS6045680M-10
Ultra Librarian 3D Model Ultra Librarian TYS6045680M-10 CAD Model

Description

The Laird-Signal Integrity Products TYS6045680M-10 is a fixed inductor that has an inductance of 68 µH and can handle a current of up to 1A.

  • Inductance: 68 µH
  • Current: 1A
  • Case/Package: Nonstandard
  • Shielding: Shielded
  • Operating Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes
  • Packaging: Reel
  • Pieces per Package: 1500
  • REACH Unaffected: Yes
  • ECCN: EAR99
