Same model may have multiple batches, images only for reference.

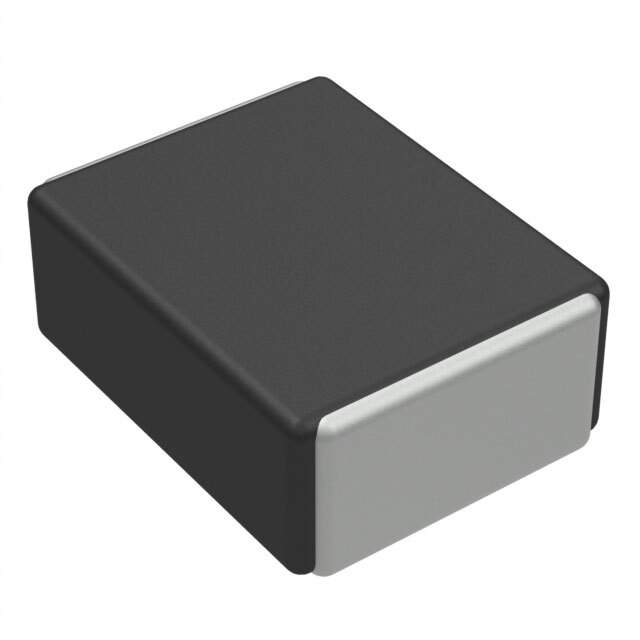

MGV2520101R0M-10 Real Image
Same model may have multiple batches, images only for reference.

MGV2520101R0M-10

Part No MGV2520101R0M-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 1UH 3A 54 MOHM SMD / 1 µH Shielded Molded Inductor 3 A 54mOhm Max 1008 (2520 Metric)
Datasheet
MGV2520101R0M-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Laird-Signal Integrity Products
Series MGV
Package Tape & Reel
Type Molded
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 240-3069-2,240-3069-1,MGV2520101R0M-10-ND,240-3069-6
Standard Package 3,000
Win Source Part Number 981013-MGV2520101R0M-10
Ultra Librarian 3D Model Ultra Librarian MGV2520101R0M-10 CAD Model

Description

The MGV series inductor from Laird-Signal Integrity Products is a molded type, shielded inductor with a package size of 1008 (2520 metric).

  • Manufacturer: Laird-Signal Integrity Products
  • Series: MGV
  • Inductor Type: Molded, Shielded
  • Package Size: 1008 (2520 Metric)
  • Inductance: 1μH
  • Inductance Tolerance: ±20%
  • DC Resistance: 54mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 3A
  • Height: 0.039" (1.00mm) Seated
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Applications: Power management, communications & networking, automation & process control, automotive, consumer electronics, computers & computer peripherals, medical, and industrial
