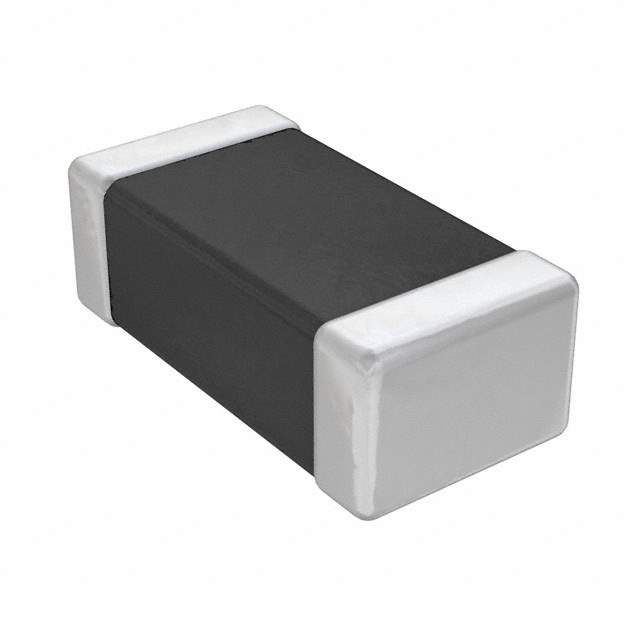

LF1206E152R-10

Part No LF1206E152R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 946 OHM 1206 1LN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 7 Weeks
Features Power, Signal Line Ferrite Bead 1206 (3216 Metric) 500mA 300mOhm
Manufacturer Laird-Signal Integrity Products
Series LF
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 240-2566-1, 240-2566-2, 240-2566-6, LF1206E152R10
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922923-LF1206E152R-10
Ultra Librarian 3D Model Ultra Librarian LF1206E152R-10 CAD Model

Description

The Laird-Signal Integrity Products 922923-LF1206E152R-10 is a power and signal line ferrite bead designed to provide protection against electromagnetic interference.

  • Current Rating: 500mA
  • Mounting Style: Surface Mount
  • Filter Height: 0.043" (1.10mm)
  • Package Size: 1206 (3216 Metric)
  • Impedance: 600 Ohm @ 100MHz
  • DC Resistance (DCR): 300 mOhm
  • Temperature Range: -40°C to 125°C
