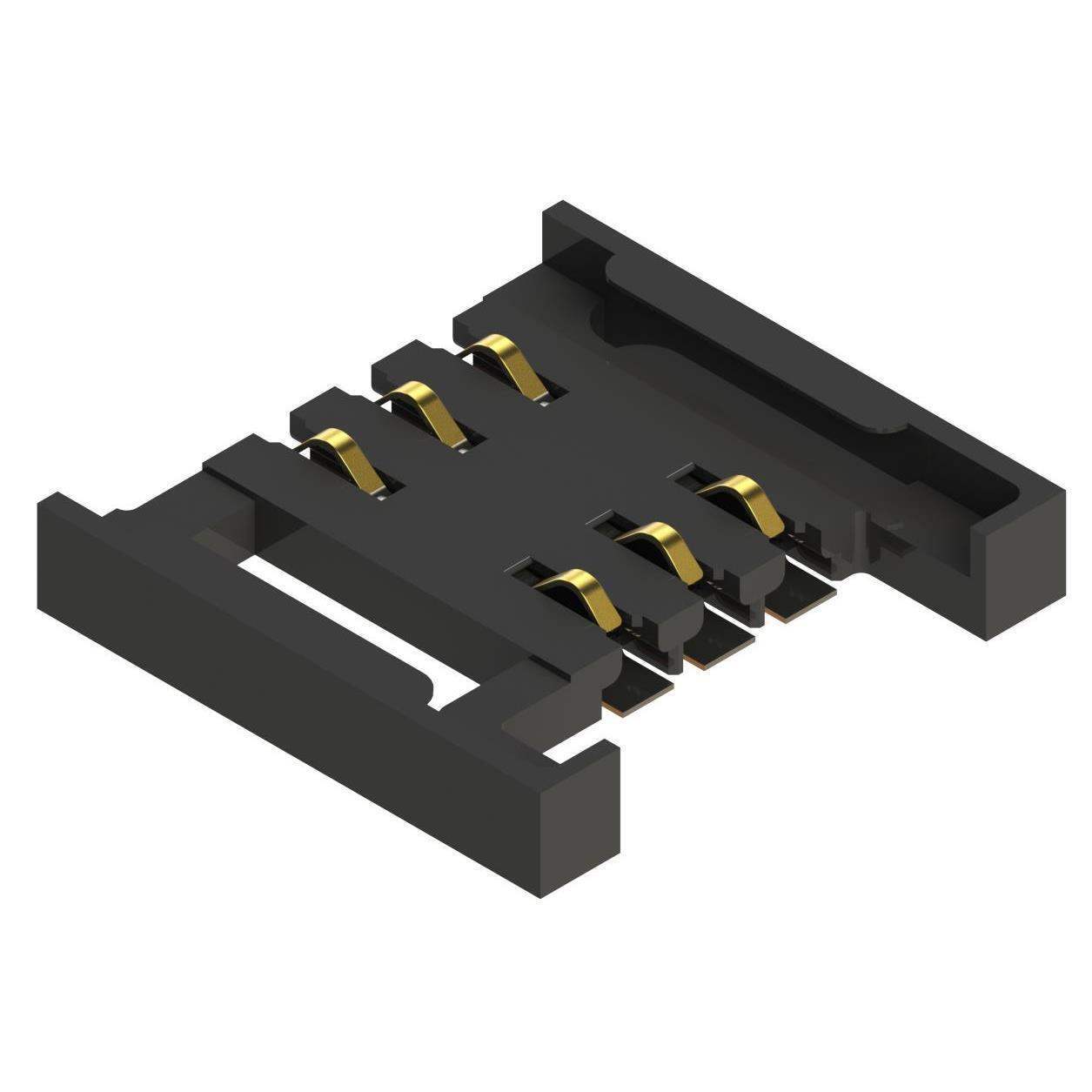

Same model may have multiple batches, images only for reference.
009162006206175 KYOCERA AVX
Same model may have multiple batches, images only for reference.

009162006206175

Part No 009162006206175
Manufacturer Kyocera International Inc. Electronic Components
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM CARD PUSH-PULL R/A SMD
Datasheet
009162006206175 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305254-009162006206175
Manufacturer KYOCERA AVX
Category Connectors, Interconnects- Card Edge Connectors- Edgeboard Connectors
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Card Type SIM Card
Number of Positions 6
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Type Surface Mount, Right Angle
Mounting Feature Normal, Standard - Top
Ultra Librarian 3D Model Ultra Librarian 009162006206175 CAD Model

Description

The standard SIM connector is specifically designed for handheld devices requir- ing secure subscriber identification. Following on from the introduction of our standard SIM block with an offering of 3 standard heights, 0.80mm, 1.60mm, or 2.40mm, KYOCERA AVX is now adding another standard to the 9162 series SIM connectors, the slide-in SIM.
Unlike SIM blocks which require SIM card guides to aid insertion, removal and retention of the SIM card, the slide-in SIM has guides as part of the connector mold design.
Contacts are stamped, gold plated, rated 0.5A, and 5000 mechanical cycles.
