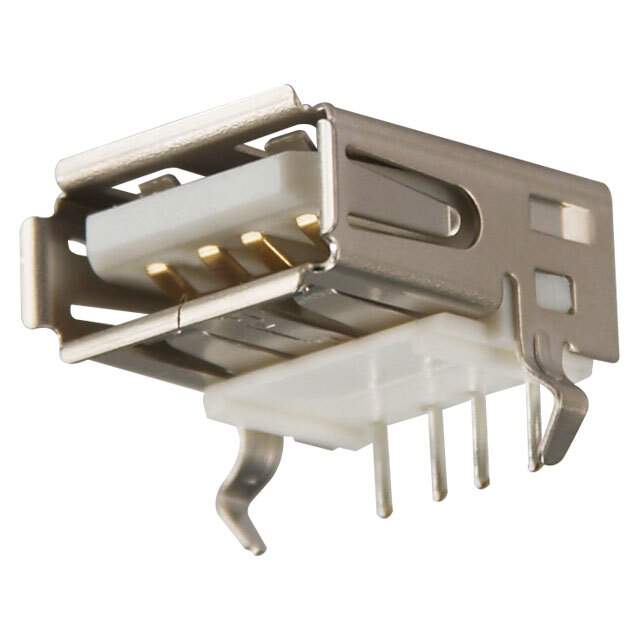

KUSBX-AS1N-W Real Image
Same model may have multiple batches, images only for reference.

KUSBX-AS1N-W

Part No KUSBX-AS1N-W
Manufacturer Kycon, Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB TYPE A R/A / USB-A (USB TYPE-A) Receptacle Connector 4 Position Through Hole, Right Angle
Datasheet
KUSBX-AS1N-W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Kycon, Inc.
Series KUSBX
Package Tray
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.5A
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color White
Base Product Number KUSBX
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2092-KUSBX-AS1N-W
Standard Package 100
Win Source Part Number 1205484-KUSBX-AS1N-W
Ultra Librarian 3D Model Ultra Librarian KUSBX-AS1N-W CAD Model

Description

The KUSBX-AS1N-W is a USB-A (USB TYPE-A) connector that features board lock and solder termination from Kycon, Inc.

  • Contact Finish: Gold
  • Package: Tray
  • Gender: Receptacle
  • Number of Contacts: 4
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Number of Ports: 1
  • Voltage Rated: 30VAC
  • Mounting Feature: Horizontal
  • Mating Cycles: 1500
  • Insulation Color: White
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -40°C ~ 85°C
  • Shell/Shielding Material: Copper Alloy
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 1.5A
  • HTSUS: 8536.69.4040
  • Base Product Number: KUSBX
