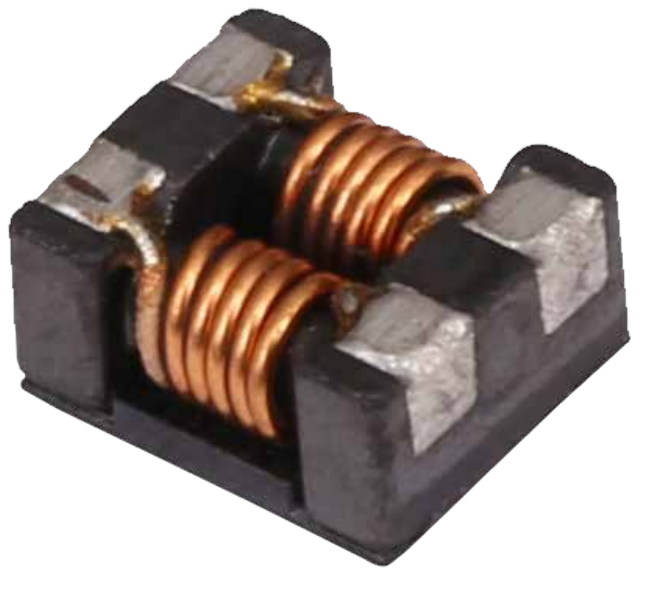

Same model may have multiple batches, images only for reference.
BCMA4520-102N KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BCMA4520-102N

Part No BCMA4520-102N
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 1000Ω@100MHz  2.1A  68mΩ
Datasheet
BCMA4520-102N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Common Mode Chokes
Impedance@100MHz(Ω) 1000Ω
Saturation Current 2.1A
DC Resistance 68mΩ
Application ·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition 150 ~200℃/60~180 sec.
Allowed time above 217℃ 60~150 sec.
Max temperature 260℃.
Max time at max temperature 10 sec.
Allowed Reflow time 3x max
Features High common mode impedance at high frequency causeexcellent noise suppression performance Designed to be low profile and Supports large currents (up to 6 A)
Operating temperature range -40 to +125°C(including self-temperature rise)
Quantity 1000pcs
Ultra Librarian 3D Model Ultra Librarian BCMA4520-102N CAD Model
