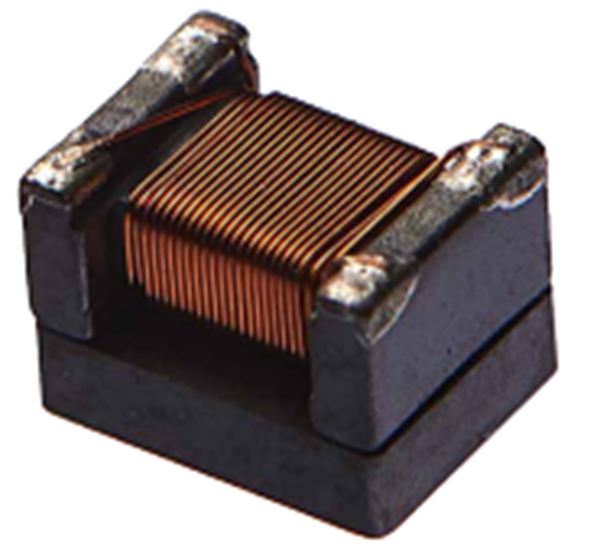

ACMA3225-510Y KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACMA3225-510Y

Part No ACMA3225-510Y
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 51uH 200mA 0.7Ω
Datasheet
ACMA3225-510Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Common Mode Chokes
L@100kHz/0.1V(μH) 51uH
Saturation Current 200mA
DC Resistance 0.7Ω
Application CAN-BUS, FlexRay system
Soldering Reflow
Preheat condition 150 ~200℃/60~120 sec.
Allowed time above 217℃ 60~150 sec.
Max temperature 260℃.
Allowed Reflow time 3x max
Features Compact products,whose characteristics areequivalent to that of conventionai products"Common mode filters for Signal Line"
Operating temperature range -55 to+150 ℃
Quantity 2000pcs
Ultra Librarian 3D Model Ultra Librarian ACMA3225-510Y CAD Model
