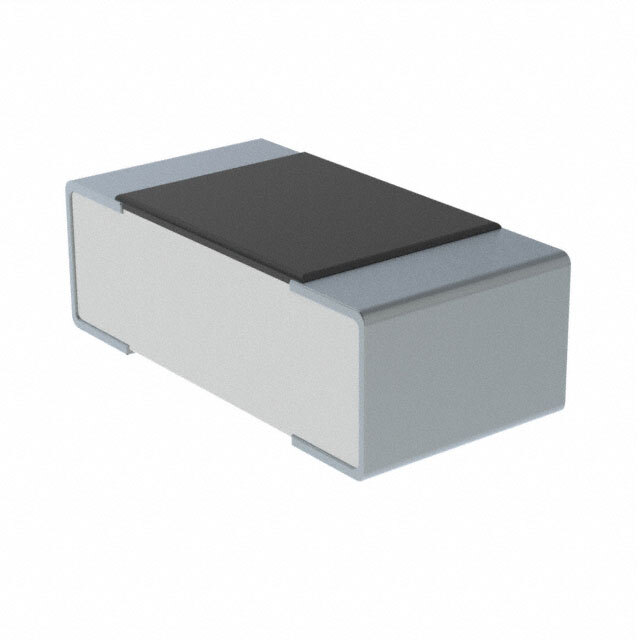

Same model may have multiple batches, images only for reference.
SR731JTTDR820F KOA Speer
Same model may have multiple batches, images only for reference.

SR731JTTDR820F

Part No SR731JTTDR820F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description CURRENT SENSE RESISTOR
Datasheet
SR731JTTDR820F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series SR73
Package Tape & Reel
Product Status Active
Resistance 820 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
Base Product Number SR731J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375467-SR731JTTDR820F
Ultra Librarian 3D Model Ultra Librarian SR731JTTDR820F CAD Model

Description

The SR731JTTDR820F is a chip resistor manufactured by KOA Speer Electronics, Inc.

  • Manufacturer: KOA Speer Electronics, Inc.
  • Series: SR73
  • Resistance: 820 mOhms
  • Tolerance: ±1%
  • Power: 0.25W or 1/4W
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.022" (0.55mm)
  • Application: Automotive
  • Features: AEC-Q200, Current Sense, Moisture Resistant
  • Package: 0603 (1608 Metric) Tape and Reel
  • Terminations: 2
  • REACH: Unaffected
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Surface Mount
