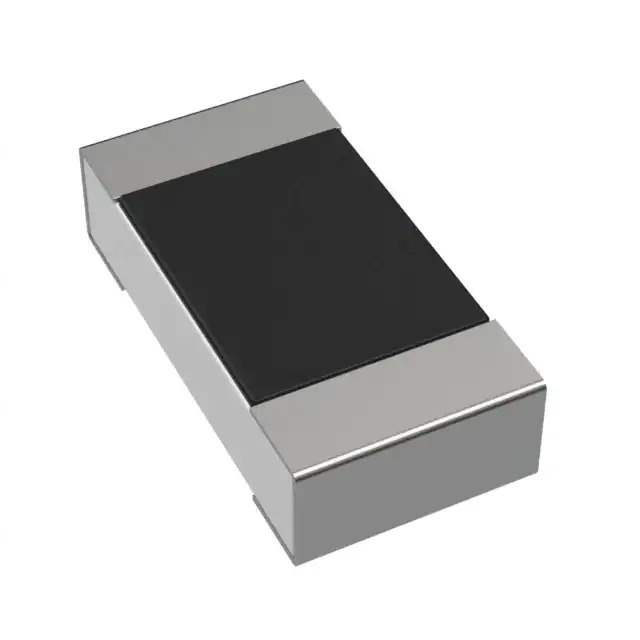

RN73H1JTTD3241B25 Real Image
Same model may have multiple batches, images only for reference.

RN73H1JTTD3241B25

Part No RN73H1JTTD3241B25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 3.24K OHM 0.1% 1/10W 0603
Datasheet
RN73H1JTTD3241B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RN73H
Package Tape & Reel
Product Status Active
Resistance 3.24 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Metal Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number RN73H1J
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 726491-RN73H1JTTD3241B25
Ultra Librarian 3D Model Ultra Librarian RN73H1JTTD3241B25 CAD Model

Description

The 726491-RN73H1JTTD3241B25 is a chip resistor designed for surface mount applications. It is a part of the RN73H series and is manufactured by KOA Speer.

  • Resistance: 3.24 kOhms
  • Tolerance: ±0.1%
  • Power Rating: 0.1W (1/10W)
  • Temperature Coefficient: ±25ppm/°C
  • Automotive: AEC-Q200
  • Moisture Resistant: Yes
  • Package Size: 0603 (1608 Metric)
  • Packaging: Tape & Reel
  • Height Seated: 0.022" (0.55mm)
  • Composition: Metal Film
  • Terminations: 2
  • Status: Active
  • Operating Temperature Range: -55°C to 155°C
  • REACH: Not affected
  • ECCN: EAR99
