Same model may have multiple batches, images only for reference.

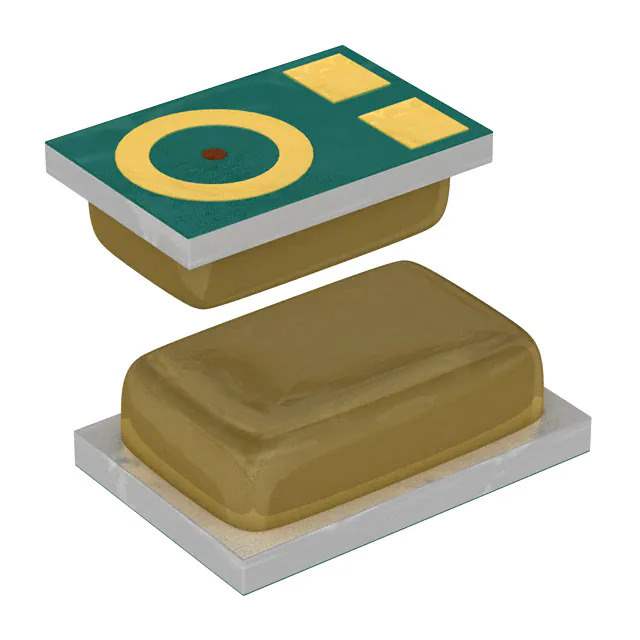

SPV1840LR5H-B Real Image
Same model may have multiple batches, images only for reference.

SPV1840LR5H-B

Part No SPV1840LR5H-B
Manufacturer Knowles
Catalog Microphones
Description MIC MEMS ANALOG OMNI -38DB / 100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.6 V Omnidirectional (-38dB ±3dB @ 94dB SPL) Solder Pads
Datasheet
SPV1840LR5H-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Microphones
Mfr Knowles
Series SiSonic™, Zero-Height Mic™, SPV
Package Tape & Reel
Product Status Obsolete
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100 Hz ~ 10 kHz
Sensitivity -38dB ±3dB @ 94dB SPL
S/N Ratio 62.5dB
Impedance 400 Ohms
Voltage Range 1.5 V ~ 3.6 V
Current - Supply 60 µA
Port Location Bottom
Termination Solder Pads
Size / Dimension 0.108" L x 0.073" W (2.75mm x 1.85mm)
Height (Max) 0.039" (0.98mm)
Shape Rectangular
Standard Package 5,900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.10.8030
Win Source Part Number 849933-SPV1840LR5H-B
Ultra Librarian 3D Model Ultra Librarian SPV1840LR5H-B CAD Model

Description

The SPV1840LR5H-B is a MEMS microphone from the SiSonic™, Zero-Height Mic™, SPV series, manufactured by Knowles. Although this particular model is obsolete, it was widely used in audio applications.

  • Termination: Solder Pad
  • Packaging: Tape and Reel
  • Length: 0.108 inches
  • Width: 0.073 inches
  • Directionality: Omnidirectional
  • Frequency Range: 100 Hz to 10 kHz
  • Sensitivity: -38dB ±3dB @ 94dB SPL
  • Signal-to-Noise Ratio: 62.5dB
  • Current Supply: 60μA
  • Port Location: Bottom
