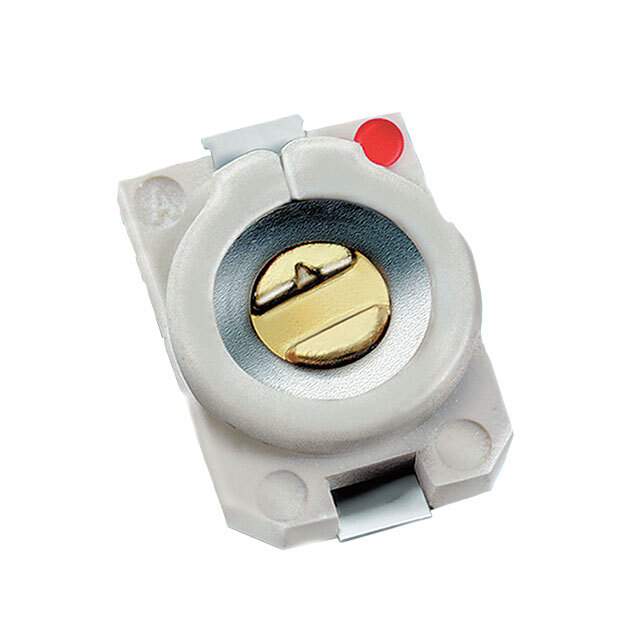

JZ150HV Real Image
Same model may have multiple batches, images only for reference.

JZ150HV

Part No JZ150HV
Manufacturer Knowles Voltronics
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 3-15PF 350V SMD  /  3 ~ 15pF Trimmer Capacitor 350 V Top Surface Mount
Datasheet
JZ150HV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Knowles Voltronics
Series JZ_HV
Package Tape & Reel
Capacitance Range 3 ~ 15pF
Adjustment Type Top
Voltage - Rated 350 V
Dielectric Material Ceramic
Q @ Freq 1500 @ 1MHz
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.057" (1.45mm)
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Features General Purpose
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0010
Other Names 1674-1011-6,1674-1011-1,1674-1011-2
Standard Package 1,000
Win Source Part Number 1172459-JZ150HV
Ultra Librarian 3D Model Ultra Librarian JZ150HV CAD Model

Description

The JZ150HV is a ceramic trimmer capacitor from Knowles Voltronics.

  • Type: General Purpose Variable Capacitor
  • Capacitance Range: 3 ~ 15pF
  • Voltage Rating: 350 V
  • Mounting Type: SMD (SMT)
  • Adjustment Type: Top Adjustment
  • Q @ Freq: 1500 @ 1MHz
  • Package: Tape & Reel
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • Series: JZ_HV
