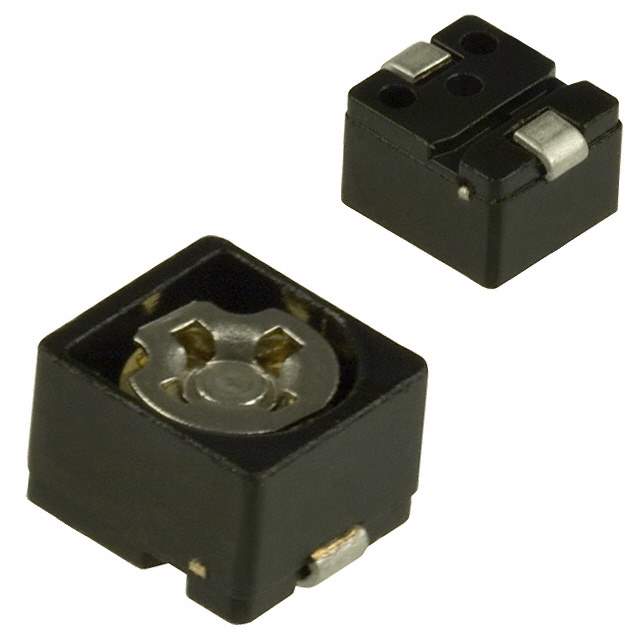

TZB4Z250AB10R00 Real Image
Same model may have multiple batches, images only for reference.

TZB4Z250AB10R00

Part No TZB4Z250AB10R00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 4-25PF 50V SMD / Ceramic Trimmer Capacitors
Datasheet
TZB4Z250AB10R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Part Status Obsolete (End Of Life)
Capacitance Range 4 ~ 25pF
Adjustment Type Top
Voltage - Rated 50V
Dielectric Material Ceramic
Q at Freq 300 at 1MHz
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum) 0.126" (3.20mm)
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Features General Purpose
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802530-TZB4Z250AB10R00
Ultra Librarian 3D Model Ultra Librarian TZB4Z250AB10R00 CAD Model

Description

The Murata Electronics TZB4Z250AB10R00 is a general-purpose ceramic capacitor.

  • Voltage Rating: 50V
  • Capacitance: 4 ~ 25pF
  • Operating Temperature Range: -25°C ~ 85°C
  • Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • Height-Seated (Maximum): 0.126" (3.20mm)
  • Package: Reel
  • Status: Obsolete (EOL)
  • Manufacturer Pack Quantity: 500
  • Q @ Freq: 300 @ 1MHz
