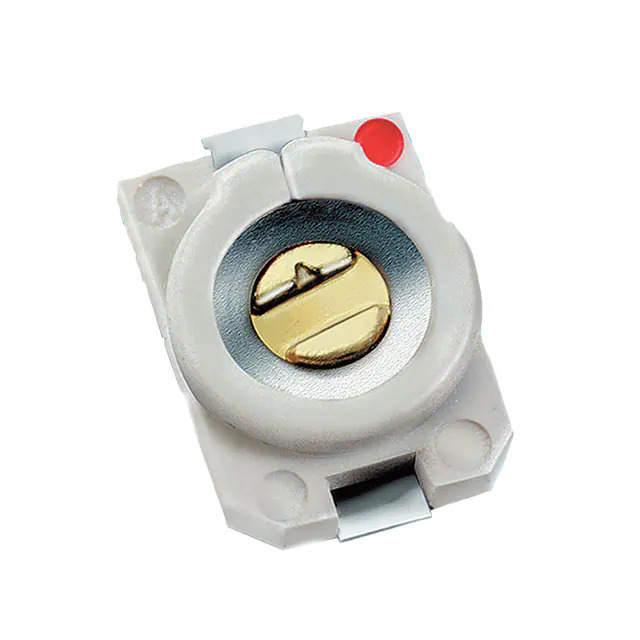

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Trimmers, Variable Capacitors
Mfr Knowles Voltronics
Series JZ
Package Tape & Reel
Product Status Active
Capacitance Range 1.5 ~ 3pF
Adjustment Type Top
Voltage - Rated 125 V
Dielectric Material Ceramic
Q @ Freq 500 @ 1MHz
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.057" (1.45mm)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.30.0010
Win Source Part Number 1360637-JZ030
Ultra Librarian 3D Model Ultra Librarian JZ030 CAD Model

Description

The Knowles Voltronics JZ series is a range of general-purpose trimmers and variable capacitors.

  • Temperature Range: -40°C to 85°C
  • Voltage Rating: 125V
  • Mounting Type: Surface Mount
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height: 0.057" (1.45mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Capacitance: 1.5 ~ 3pF
  • Q Value: 500 @ 1MHz
