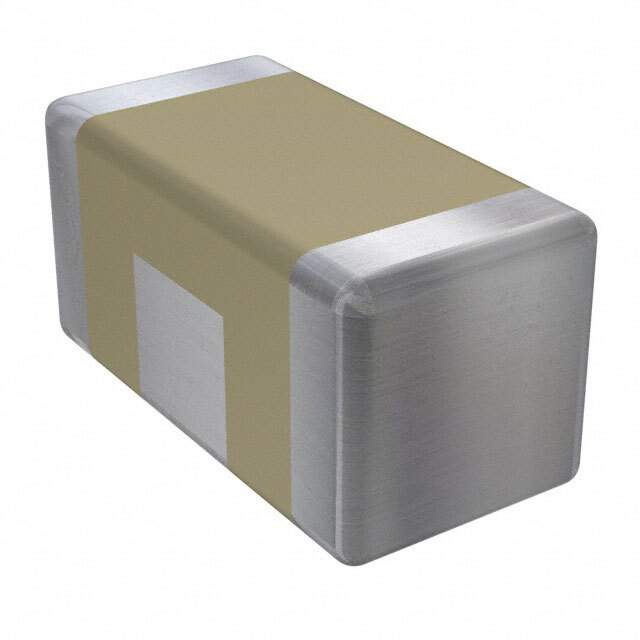

SBSPP1000472MXT Real Image
Same model may have multiple batches, images only for reference.

SBSPP1000472MXT

Part No SBSPP1000472MXT
Manufacturer Knowles Syfer
Catalog EMI/RFI Filters (LC, RC Networks)
Datasheet
SBSPP1000472MXT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Knowles Syfer
Series SBSP
Package Tape & Reel
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 37dB @ 100MHz
Current 1 A
Values C = 4700pF
ESD Protection No
Applications General Purpose
Voltage - Rated 100V
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), 3 PC Pad
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.071" (1.80mm)
Base Product Number SBSPP
Other Names 1608-1216-1,1608-1216-2,1608-1216-3,1608-1216-3,1608-1216-6
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276405-SBSPP1000472MXT
Ultra Librarian 3D Model Ultra Librarian SBSPP1000472MXT CAD Model

Description

The SBSP series LC (Pi) low pass EMI/RFI filter is a general-purpose filter designed to reduce electromagnetic interference in electronic circuits.

  • Type: LC (Pi) Low Pass EMI/RFI Filter
  • Application: General Purpose
  • Voltage: 100V
  • Current: 1A
  • Attenuation Value: 37dB @ 100MHz
  • Filter Order: 3rd
  • Center/Cutoff Frequency: Not Specified
  • Package: 1206 (3216 Metric), 3 PC Pad Tape and Reel
  • Dimensions: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.071" (1.80mm)
  • Capacitance: C = 4700pF
  • ESD Protection: No
  • Temperature Range of Operation: Not Specified
  • Manufacturer: Knowles Syfer
  • Other Names: 1608-1216-1,1608-1216-2,1608-1216-3,1608-1216-3,1608-1216-6
