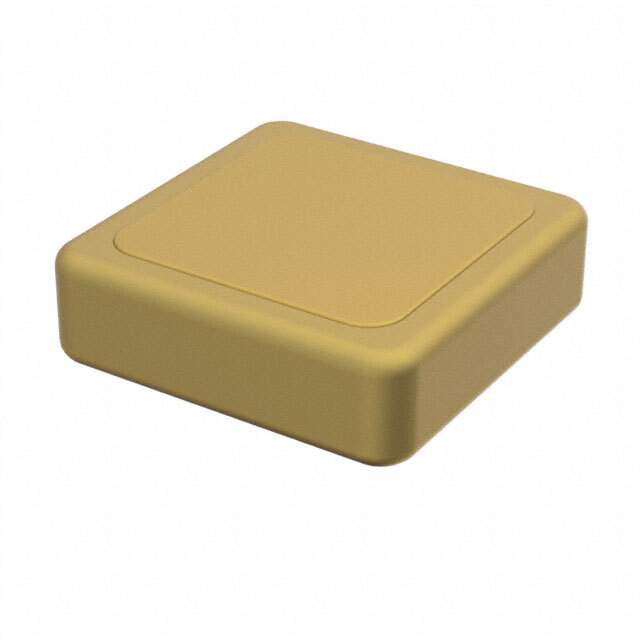

D20BD100M1BX Real Image
Same model may have multiple batches, images only for reference.

D20BD100M1BX

Part No D20BD100M1BX
Manufacturer Knowles Dielectric Labs
Catalog Ceramic Capacitors
Description CAP CER 10PF 100V BD SMD / 10 pF ±20% 100V Ceramic Capacitor BD 0202 (0505 Metric)
Datasheet
D20BD100M1BX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Knowles Dielectric Labs
Series Border Cap®
Package Tray
Capacitance 10 pF
Tolerance ±20%
Voltage - Rated 100V
Temperature Coefficient BD
Temperature Range - Operating -55°C ~ 125°C
Features Bonding Mountable, Single Layer
Applications RF, Microwave, High Frequency, Bypass, Decoupling
Mounting Type Surface Mount, SLCC
Package / Case 0202 (0505 Metric)
Size / Dimension 0.020" L x 0.020" W (0.51mm x 0.51mm)
Thickness (Max) 0.009" (0.22mm)
Base Product Number D20BD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0020
Win Source Part Number 1349596-D20BD100M1BX
Ultra Librarian 3D Model Ultra Librarian D20BD100M1BX CAD Model

Description

The Knowles Dielectric Labs 1349596-D20BD100M1BX is a ceramic capacitor from the Border Cap® series by Knowles Dielectric Labs.

  • Type: Single Layer
  • Mounting Type: Bonding Mountable
  • Capacitance: 10 pF
  • Tolerance: ±20%
  • Rated Voltage: 100V
  • Temperature Coefficient: BD
  • Package: Tray
  • Size: 0.020" L x 0.020" W (0.51mm x 0.51mm)
  • Applications: RF, Microwave, High Frequency, Bypass, and Decoupling
  • Mounting Style: Surface Mount, SLCC
  • Thickness (Max): 0.009" (0.22mm)
  • Operating Temperature: -55°C to 125°C
