Same model may have multiple batches, images only for reference.

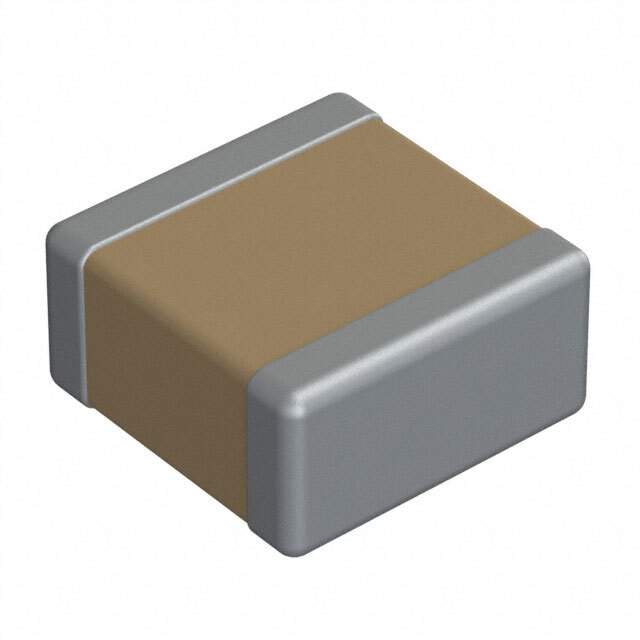

C11AH1R8B-9UN-X1T Real Image
Same model may have multiple batches, images only for reference.

C11AH1R8B-9UN-X1T

Part No C11AH1R8B-9UN-X1T
Manufacturer Knowles Dielectric Labs
Catalog Ceramic Capacitors
Description CAP CER 0505 / 1.8 pF ±0.1pF 250V Ceramic Capacitor P90 0505 (1313 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Knowles Dielectric Labs
Series AH
Package Tape & Reel (TR)
Capacitance 1.8 pF
Tolerance ±0.1pF
Voltage - Rated 250V
Temperature Coefficient P90
Temperature Range - Operating -55°C ~ 125°C
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0505 (1313 Metric)
Dimension 0.055" L x 0.055" W (1.40mm x 1.40mm)
Base Product Number C11AH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names C11AH1R8B-9UN-X1T-3.5K
Standard Package 3,500
Win Source Part Number 1131800-C11AH1R8B-9UN-X1T
Ultra Librarian 3D Model Ultra Librarian C11AH1R8B-9UN-X1T CAD Model

Description

This AH series ceramic capacitor from Knowles Dielectric Labs is designed for RF, microwave, and high frequency applications. It has a capacitance of 1.8 pF, ±0.1pF tolerance, and is rated for a voltage of 250V.

  • Series: AH
  • Application: RF, Microwave, High Frequency
  • Capacitance: 1.8 pF
  • Tolerance: ±0.1pF
  • Voltage Rating: 250V
  • Temperature Coefficient: P90
  • Packaging: Tape & Reel
  • Quantity: 3,500 Capacitors
  • Mounting Type: Surface Mount
  • Package/Case: 0505 (1313 Metric)
  • Dimensions: 0.055" L x 0.055" W (1.40mm x 1.40mm)
  • Temperature Range: -55°C ~ 125°C
