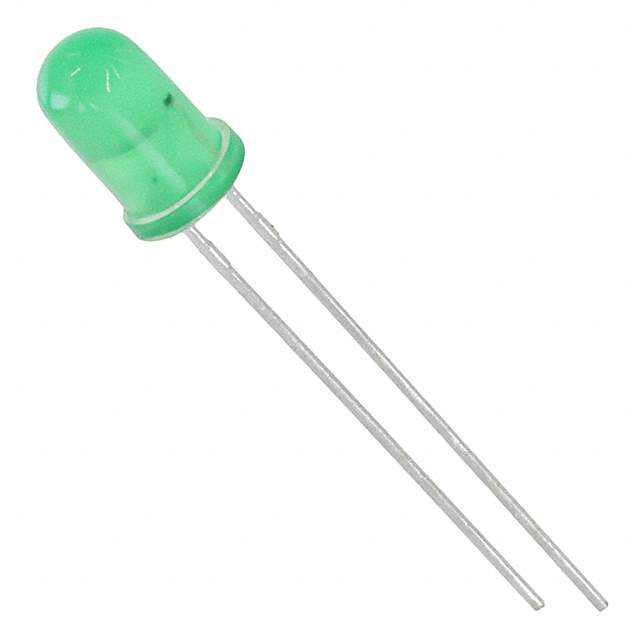

WP7113GD Real Image
Same model may have multiple batches, images only for reference.

WP7113GD

Part No WP7113GD
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED T-1 3/4 T/H  /  Green 568nm LED Indication - Discrete 2.2V Radial
Datasheet
WP7113GD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Bulk
Color Green
Configuration Standard
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 30mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 30°
Mounting Type Through Hole
Wavelength - Dominant 568nm
Wavelength - Peak 565nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 8.60mm
Base Product Number WP7113
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q3847650S,754-1263
Standard Package 1,000
Win Source Part Number 994746-WP7113GD
Ultra Librarian 3D Model Ultra Librarian WP7113GD CAD Model

Description

The Kingbright 994746-WP7113GD is a green LED indication module with a millicandela rating of 30mcd.

  • Forward Voltage: 2.2V
  • Current: 20mA
  • Peak Wavelength: 565nm
  • Dominant Wavelength: 568nm
  • Package: radial bulk
  • Dimension: 5mm, T-1 3/4
  • Perfect for: use in electronic circuits and projects
