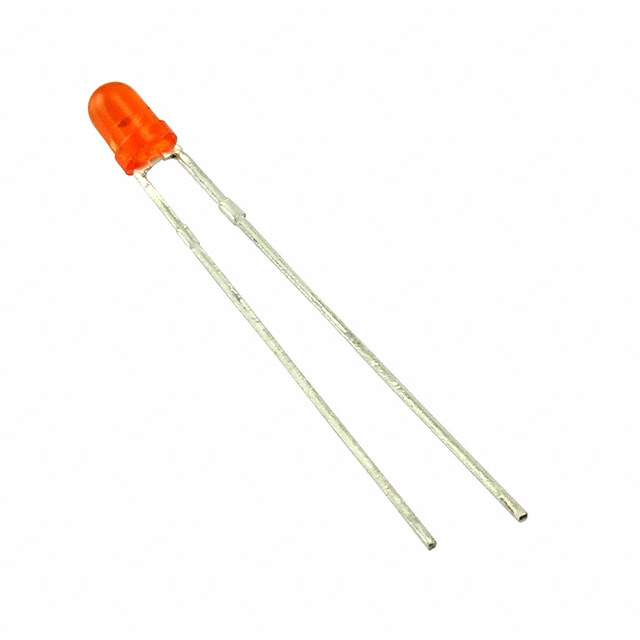

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Bulk
Color Orange
Configuration Standard
Lens Color Orange
Lens Transparency Diffused
Millicandela Rating 20mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.05V
Current - Test 20mA
Viewing Angle 40°
Mounting Type Through Hole
Wavelength - Dominant 602nm
Wavelength - Peak 607nm
Package / Case Radial
Supplier Device Package T-1
Height (Max) 5.90mm
Base Product Number WP710
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names WP710A10ND-ND,754-1892
Standard Package 1,000
Win Source Part Number 1207996-WP710A10ND
Ultra Librarian 3D Model Ultra Librarian WP710A10ND CAD Model

Description

The WP710A10ND is an orange LED indication module from Kingbright.

  • Designed for: Applications that require a compact display with low power consumption.
  • Viewing Angle: 40 degrees
  • Lens Transparency: Diffused
  • Forward Voltage: 2.05V
  • Current: 20mA
  • Peak Wavelength: 607nm
  • Millicandela Rating: 20mcd
  • Package/Case: Radial package
  • Dimensions: 5.90mm (height)
  • Ideal for: Use in LED indication for discrete applications.
