Same model may have multiple batches, images only for reference.

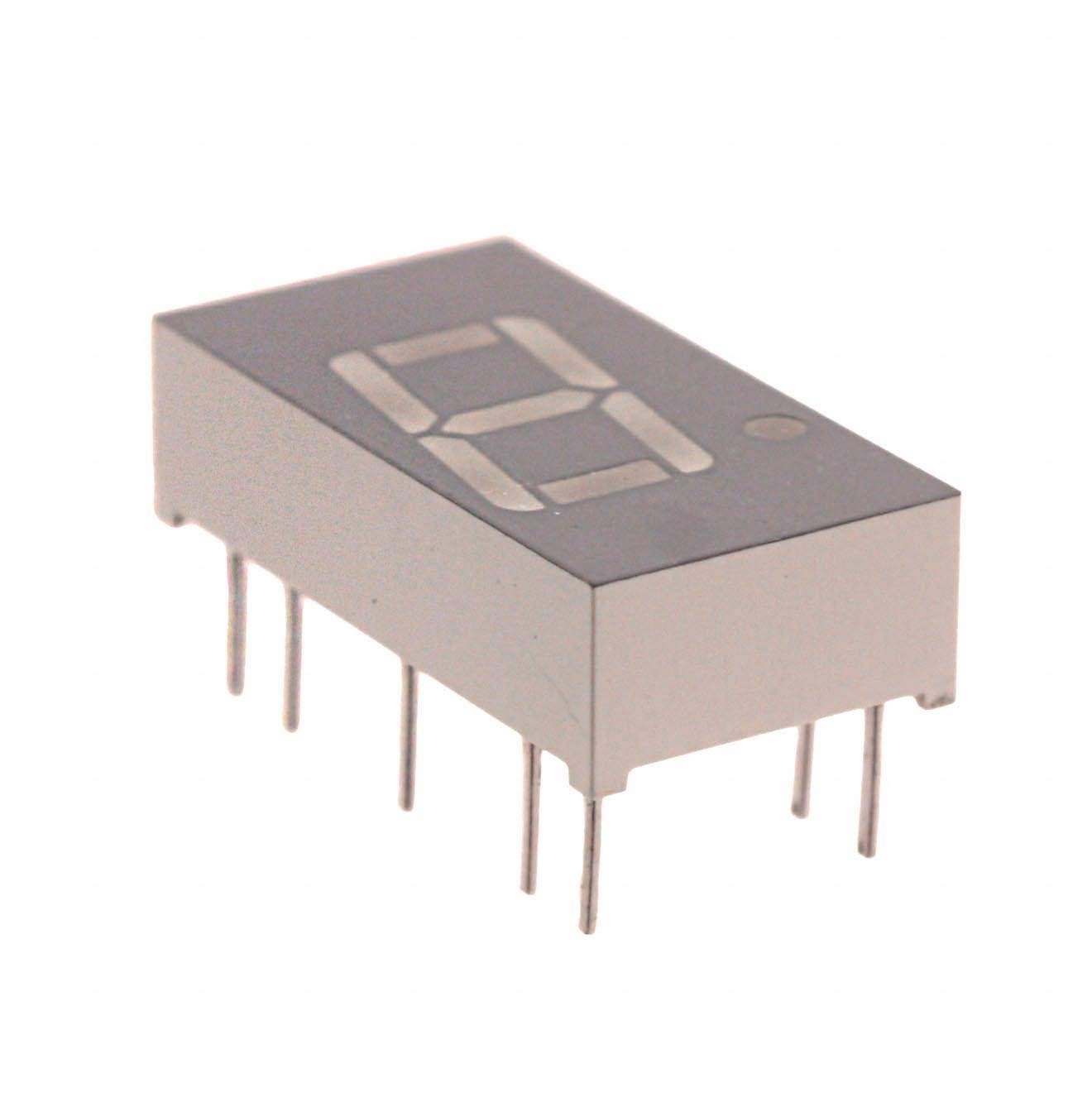

SC04-11EWA Real Image
Same model may have multiple batches, images only for reference.

SC04-11EWA

Part No SC04-11EWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.4" SGL RED 14DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm)
Datasheet
SC04-11EWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 5.6mcd
Wavelength - Peak 627nm
Power Dissipation (Max) 75mW
Package / Case 14-DIP (0.295", 7.50mm)
Base Product Number SC04-11
Other Names SC0411EWA,754-1464-5
Standard Package 27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242694-SC04-11EWA
Ultra Librarian 3D Model Ultra Librarian SC04-11EWA CAD Model

Description

The Kingbright SC04-11EWA is a red LED character and numeric display module that has a 7-segment display type.

  • Display Type: 7-segment
  • Digit/Alpha Size: 0.40" (10.16mm)
  • Common Pin: Common cathode
  • Standard Package: 27
  • Millicandela Rating: 5.6mcd
  • Voltage Forward (Vf) (Typ): 2V
  • Current Test: 20mA
  • Power Dissipation (Max): 75mW
  • Wavelength Peak: 627nm
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
