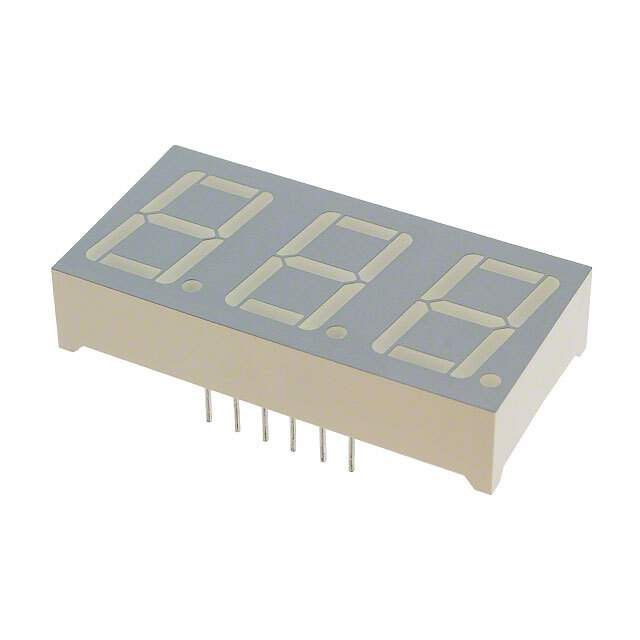

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Bulk
Status Active
Number of Characters 3
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Forward Voltage 2V
Current - Test 20mA
Millicandela Rating 5.8mcd
Wavelength - Peak 627nm
Power Dissipation (Max) 75mW
Dimension 12-DIP (0.600", 15.24mm)
Win Source Part Number 200426-BC56-12EWA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BC56-12EWA CAD Model

Description

BC56-12EWA LED Display Module

The BC56-12EWA is a dual-digit red LED display module known for its clear visibility and efficient power consumption. It is integral to various display solutions across numerous electronic devices.

  • Brightness: High-red intensity with 140mcd leads to superior visibility even in bright environments.
  • Efficient power use: Optimal for battery-operated devices where power efficiency is crucial.
  • Compact design: Facilitates ease of integration into space-limited designs.

Applications

  • Digital clocks
  • Instrument panels
  • Timers
  • Consumer electronics displays
