Same model may have multiple batches, images only for reference.

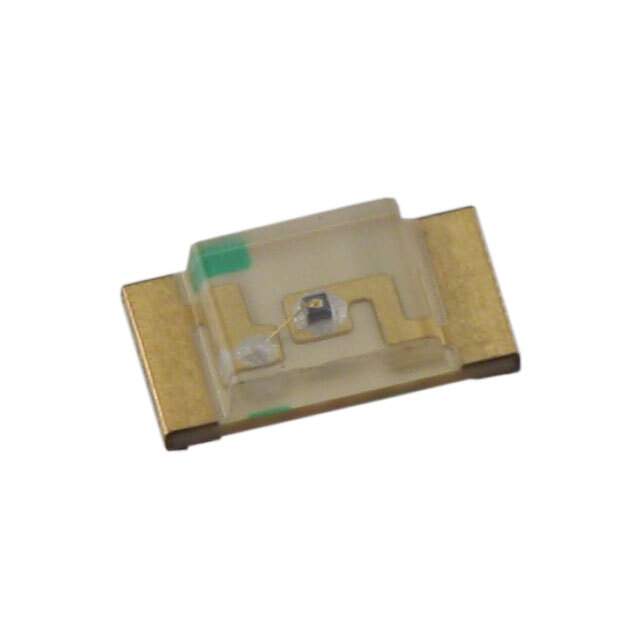

APT3216PBC/A Real Image
Same model may have multiple batches, images only for reference.

APT3216PBC/A

Part No APT3216PBC/A
Manufacturer Kingbright
Catalog LED Indication - Discrete
Datasheet
APT3216PBC/A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel (TR)
Product Status Obsolete
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 60mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 3.2V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 470nm
Wavelength - Peak 468nm
Package / Case 1206 (3216 Metric)
Supplier Device Package Chip LED
Dimension 3.20mm L x 1.60mm W
Height (Max) 0.75mm
Base Product Number APT3216
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314609-APT3216PBC/A
Ultra Librarian 3D Model Ultra Librarian APT3216PBC/A CAD Model

Description

Kingbright's APT3216PBC/A is a blue LED component that is perfect for electronic applications.

  • Manufacturer: Kingbright
  • Product Name: APT3216PBC/A
  • Component Type: LED
  • Color: Blue
  • Lens Style: Rectangular Flat Top
  • Lens Transparency: Clear
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 60mcd
  • Current-Test: 20mA
  • Forward Voltage (Vf): 3.2V
  • Wavelength: 470nm
  • Peak Wavelength: 468nm
  • Package: Tape and Reel (TR)
  • Mounting Style: Surface-Mount Device (SMD)
  • Dimensions: 3.20mm L x 1.60mm W x 0.75mm H (Maximum)
  • Package: 1206 (3216 Metric)
  • ECCN: EAR99
  • MSL Level: 3 (168 hours)
  • Product Status: Obsolete
