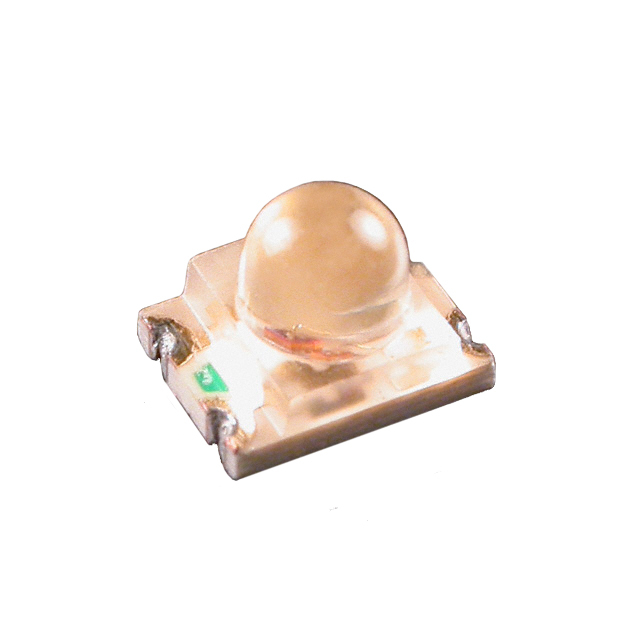

Same model may have multiple batches, images only for reference.
APBD3224LSURKSYKC Kingbright – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

APBD3224LSURKSYKC

Part No APBD3224LSURKSYKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RED/YLW CLEAR 4SMD
Datasheet
APBD3224LSURKSYKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Color Red, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd Red, 50mcd Yellow
Lens Style Round with Domed Top
Lens Size 1.80mm Dia
Voltage - Forward (Vf) (Typ) 1.8V Red, 1.9V Yellow
Current - Test 2mA Red, 2mA Yellow
Viewing Angle 20°
Mounting Type Surface Mount
Wavelength - Dominant 630nm Red, 590nm Yellow
Wavelength - Peak 645nm Red, 590nm Yellow
Package / Case 1209 (3224 Metric)
Supplier Device Package 4-SMD
Size / Dimension 3.20mm L x 2.40mm W
Height (Max) 2.50mm
Ultra Librarian 3D Model Ultra Librarian APBD3224LSURKSYKC CAD Model
