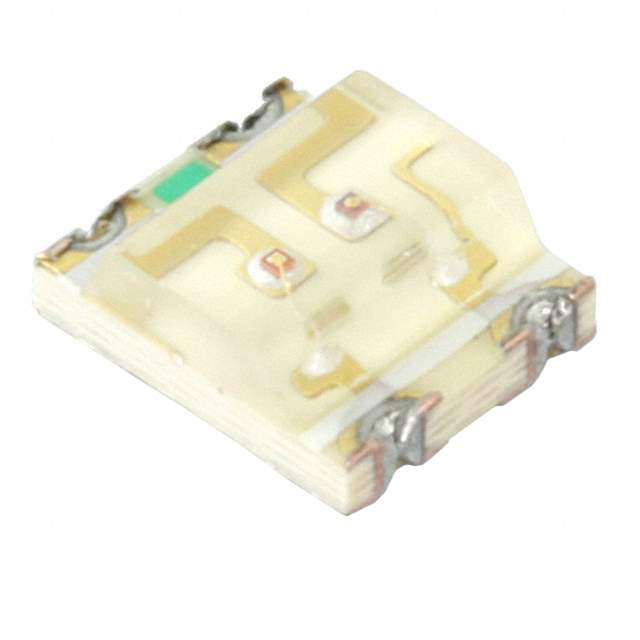

APB3025ESGC-F01

Name: APB3025ESGC-F01
Brand: Kingbright
SKU: 1045560
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APB3025ESGC-F01
Manufacturer	Kingbright
Catalog	LED Indication - Discrete
Description	LED GREEN/RED CLEAR 4SMD / Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, No Lead
Datasheet	APB3025ESGC-F01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Kingbright
Package	Tape & Reel
Color	Green, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	15mcd Green, 8mcd Red
Lens Style	Rectangle with Flat Top
Lens Size	2.00mm x 2.50mm
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	120°
Mounting	SMD (SMT)
Wavelength - Dominant	568nm Green, 617nm Red
Wavelength - Peak	565nm Green, 627nm Red
Package / Case	4-SMD, No Lead
Supplier Device Package	4-SMD
Dimension	3.00mm L x 2.50mm W
Height (Max)	1.10mm
Base Product Number	APB3025
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	754-1645-6,754-1645-2,APB3025ESGC-F01-ND,754-1645-1
Standard Package	2,000
Win Source Part Number	1045560-APB3025ESGC-F01
Ultra Librarian 3D Model	Ultra Librarian APB3025ESGC-F01 CAD Model

Alternative Products

Description

The Kingbright APB3025ESGC-F01 is a green and red LED indication discrete with a viewing angle of 120°.

LED Colors: Green and Red
Viewing Angle: 120°
Millicandela Rating (Green): 15mcd
Millicandela Rating (Red): 8mcd
Voltage Forward (Green): 2.2V
Voltage Forward (Red): 2V
Wavelength-Dominant (Green): 568nm
Wavelength-Dominant (Red): 617nm
Package Size: 4-SMD
Dimension: 3.00mm L x 2.50mm W
Lens Style: Rectangle with a flat top
Lens Size: 2.00mm x 2.50mm
RoHS: Compliant
ECCN: EAR99
REACH: Unaffected
