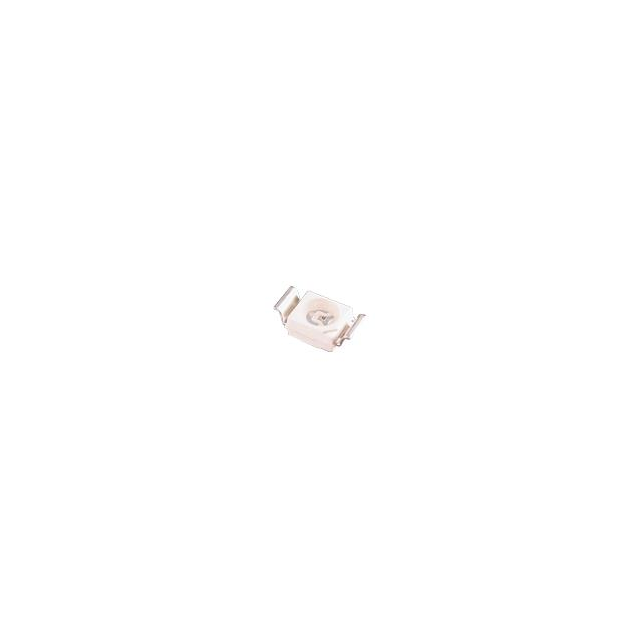

AA3528ZGCKT09 Real Image
Same model may have multiple batches, images only for reference.

AA3528ZGCKT09

Part No AA3528ZGCKT09
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED SMD / Green 525nm LED Indication - Discrete 3.3V 2-SMD, Gull Wing
Datasheet
AA3528ZGCKT09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Series Heli-R
Package Tape & Reel
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1000mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 525nm
Wavelength - Peak 515nm
Package / Case 2-SMD, Gull Wing
Supplier Device Package SMD
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 2.15mm
Base Product Number AA3528
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1349543-AA3528ZGCKT09
Ultra Librarian 3D Model Ultra Librarian AA3528ZGCKT09 CAD Model

Description

This Kingbright AA3528ZGCKT09 LED indication is a green discrete component that belongs to the Heli-R series.

  • Package: tape and reel
  • Size/Dimension: 3.20mm L x 2.80mm W
  • Standard Package: 2,000
  • Millicandela Rating: 1000mcd
  • Current-Test: 20mA
  • Dominant Wavelength: 525nm
  • Peak Wavelength: 515nm
  • Viewing Angle: 120°
  • Lens Style: round with a flat top
  • Lens Size: 2.40mm Dia
  • Mounting Type: surface mount, bottom entry
  • Package/Case: 2-SMD, gull-wing
  • Supplier Device Package: SMD
  • Voltage-Forward (Vf) (typ): 3.3V
  • REACH: unaffected
  • HTSUS: 8541.41.0000
