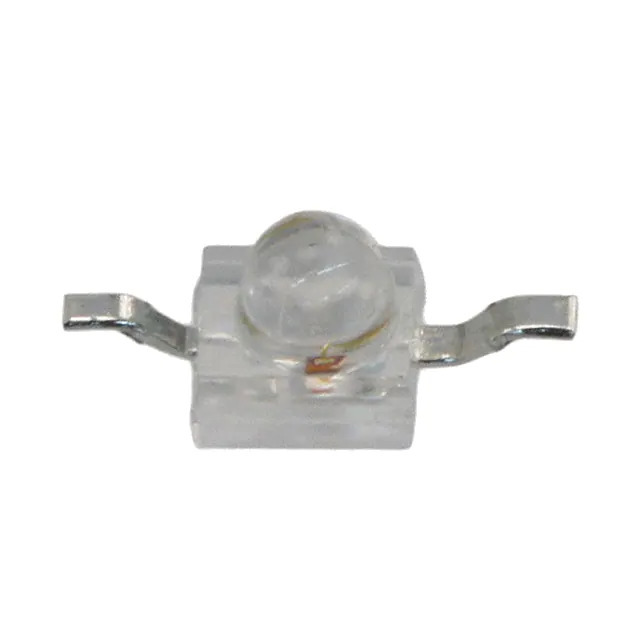

AM2520ZGC09

Name: AM2520ZGC09
Brand: Kingbright Corporation
SKU: 1377794
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AM2520ZGC09
Manufacturer	Kingbright Corporation
Catalog	LED Indication - Discrete
Description	LED GREEN CLEAR SMD
Datasheet	AM2520ZGC09 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Kingbright
Series	-
Package	Tape & Reel
Product Status	Active
Color	Green
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	3000mcd
Lens Style	Round with Domed Top
Lens Size	1.90mm Dia
Voltage - Forward (Vf) (Typ)	3.3V
Current - Test	20mA
Viewing Angle	20°
Mounting Type	Surface Mount, Bottom Entry
Wavelength - Dominant	525nm
Wavelength - Peak	515nm
Features	-
Package / Case	2-SMD, Z-Bend
Supplier Device Package	SMD
Size / Dimension	2.50mm L x 2.00mm W
Height (Max)	2.90mm
Base Product Number	AM2520
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1377794-AM2520ZGC09
Ultra Librarian 3D Model	Ultra Librarian AM2520ZGC09 CAD Model

Alternative Products

Description

The AM2520ZGC09 is a surface mount LED manufactured by Kingbright.

Category: Optoelectronics - LED Indication - Discrete
Shape: Round
Lens Style: Domed Top
Size / Dimension: 2.50mm L x 2.00mm W
Mounting Type: Surface Mount, Bottom Entry
Package / Case: 2-SMD, Z-Bend
Configuration: Standard
Color: Green
Voltage - Forward (Vf) (Typ): 3.3V
Current - Test: 20mA
Millicandela Rating: 3000mcd
Viewing Angle: 20°
Dominant Wavelength: 525nm
Peak Wavelength: 515nm
