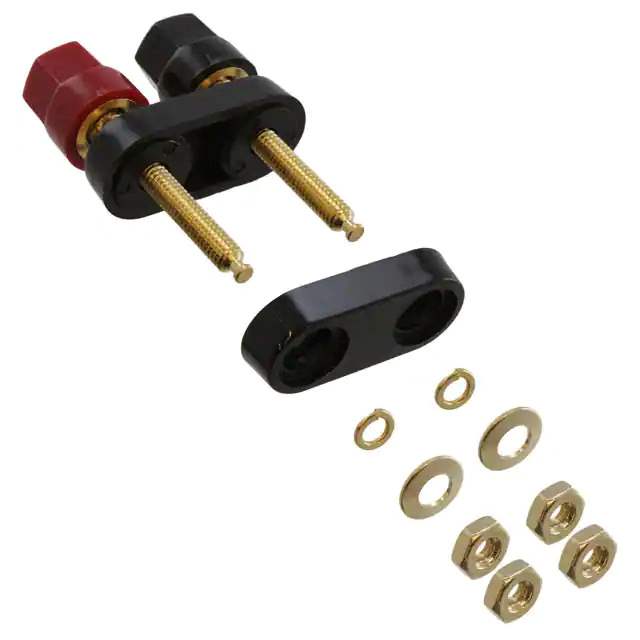

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Banana and Tip Connectors - Binding Posts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Type Standard, Dual
Head Style Hex
Termination Threaded and Turret
Termination Thread 8-32
Current Rating (Amps) 30 A
Material - Body Brass
Plating - Body Gold
Color Black, Red
Cross Hole Diameter 0.093" (2.36mm)
Head Size 0.480" OD x 0.625" L (12.19mm x 15.90mm)
Material - Insulation Polyamide (PA), Nylon
Nut Material Brass
Nut Plating Gold
Voltage Rating 1000VAC
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 545935-4108
Ultra Librarian 3D Model Ultra Librarian 4108 CAD Model

Description

The 545935-4108 is a standard dual banana and tip connector binding post designed for use in electronic applications.

  • Type: Dual Banana and Tip Connector Binding Post
  • Color: Black and Red
  • Termination: Threaded and Turret
  • Voltage Rating: 1000VAC
  • Body Material: Brass
  • Body Plating: Gold
  • Cross Hole Diameter: 0.093 inches (2.36mm)
  • Head Size: 0.480 inches OD x 0.625 inches L (12.19mm x 15.90mm)
  • Nut Material: Brass
  • Nut Plating: Gold
  • Current Rating: 30 Amps
  • RoHS Compliant: Yes
  • Packaging: Bulk
