Same model may have multiple batches, images only for reference.

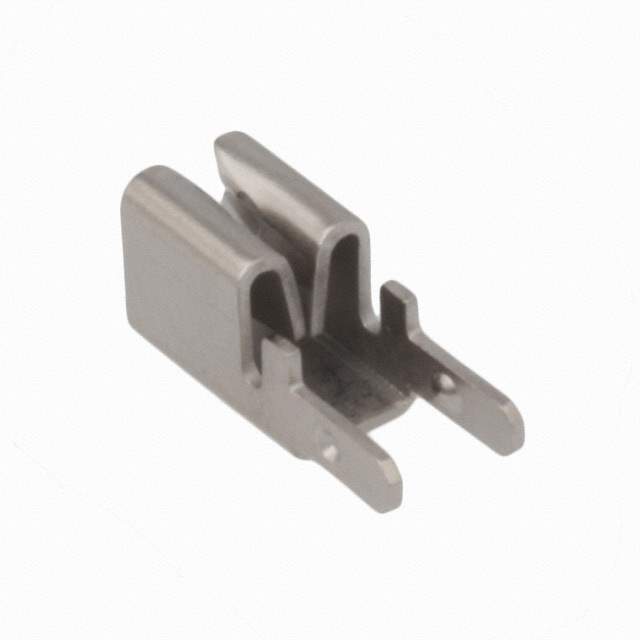

3557 Real Image
Same model may have multiple batches, images only for reference.

3557

Part No 3557
Manufacturer Keystone Electronics
Catalog Fuseholders
Description FUSE CLIP BLADE 500V 30A PCB
Datasheet
3557 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Package Bulk
Product Status Active
Mounting Type Through Hole
Current Rating (Amps) 30 A
For Use With/Related Products ATC, ATO, Miniature (ATM)
Fuse Type Blade
Fuseholder Type Clip
Number of Circuits 1
Voltage 500V
Orientation Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin Nickel
Approval Agency UL
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 845082-3557
Ultra Librarian 3D Model Ultra Librarian 3557 CAD Model

Description

The 845082-3557 is a circuit protection fuseholder designed for use with ATC, ATO, and Miniature (ATM) blade fuses.

  • Termination Style: PC Pin
  • Contact Material: Brass
  • Contact Finish: Tin Nickel
  • Voltage Rating: 500V
  • Current Rating: 30A
  • Mounting Type: Through-Hole
  • Orientation: Vertical
  • Package Quantity: 1 piece
  • Manufacturer: Keystone Electronics
  • Approvals: UL
