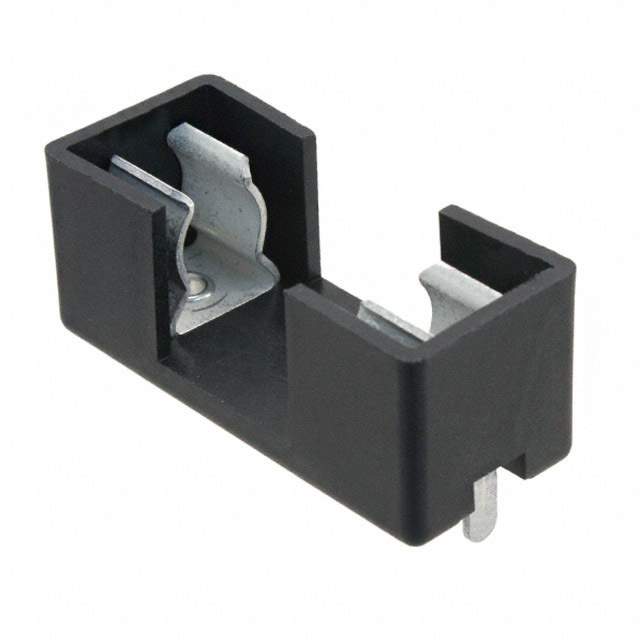

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Approval Agency UL
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 855794-3576
Ultra Librarian 3D Model Ultra Librarian 3576 CAD Model

Description

The 855794-3576 is a fuseholder from Keystone Electronics.

  • Category: Circuit Protection, Fuseholders
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Fuse Size: 5AG, 13/32" x 1-1/2" (Midget)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Fuse Type: Cartridge, 0.394" Dia x 1.496" L (10mm x 38mm)
  • Number of Circuits: 1
  • Orientation: Horizontal
  • Package: Bulk
  • Standard Package: 100 pieces
  • Product Status: Active
  • Approval: UL
