Same model may have multiple batches, images only for reference.

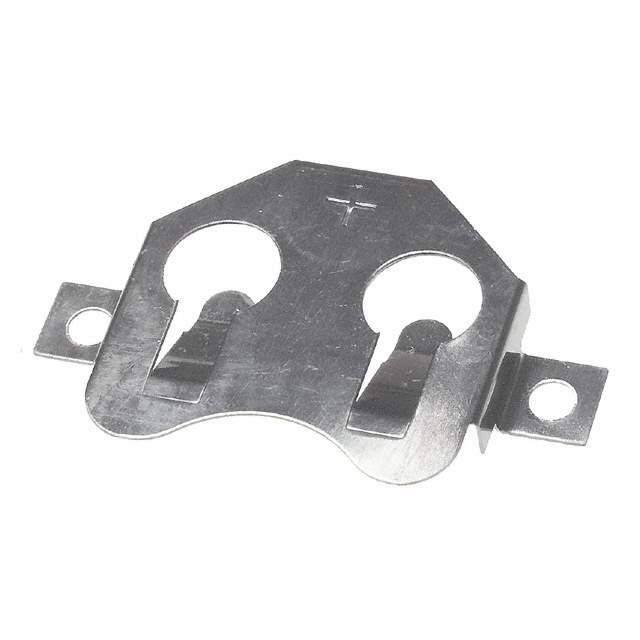

3002 Real Image
Same model may have multiple batches, images only for reference.

3002

Part No 3002
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT RETAINER COIN 20MM 1CEL SMD
Datasheet
3002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 20.0mm
Number of Cells 1
Battery Series 2016, 2020, 2025, 2032
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.156" (3.96mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855476-3002
Ultra Librarian 3D Model Ultra Librarian 3002 CAD Model

Description

The 855476-3002 is a surface mount retainer designed for holding a single coin cell battery with a size of 20.0mm and is manufactured by Keystone Electronics.

  • Battery Size: 20.0mm
  • Compatible Coin Cell Battery Series: 2016, 2020, 2025, and 2032
  • Package Quantity: 100 pieces
  • Termination Style: SMD (SMT) tab
  • Height Above Board: 0.156" (3.96mm)
  • Mounting: PCB surface mounting
  • ECCN: EAR99
  • MSL level: 1
  • REACH: Unaffected
  • HTSUS code: 8536.69.4040
  • Product Status: Active
